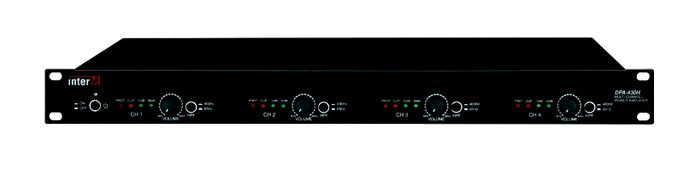

Inter-M Americas Inc DPA-430H
4-Channel 300W Power Amplifier

OUR PART #:  DPA-430H

Inter-M Americas Inc's DPA-430H is a quad channel 300W amplifier70/100v capable of delivering a total 1200 watts of Power respectively housed in 1 RU compact chassis.
Learn More
Our Price: $1,615.35
List Price: $1,776.88
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Inter-M Americas Inc DPA-430H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Inter-M Americas Inc's DPA-430H is a quad channel 300W amplifier70/100v capable of delivering a total 1200 watts of Power respectively housed in 1 RU compact chassis. These Class D amplifiers offer High power in reduced size and weight. The combination Class D type amplification circuitry combined with SMPS (Switch mode Power Supplies) creates a high efficiency amplifier offering reduced power consumption and low heat dissipation. The DPA-430H offers 4 channels of High impedance Ideal for applications where high power and large quantity of long-line speaker installation is required such as Airports Arena, shopping malls, transportation stadiums or any large scale facilities.

CLASS D

Class D audio amplifier offer greater power efficiency over traditional amplifiers. Among their advantages is their reduced physical size and lower heat dissipation. They offer less than 1% THD, total harmonic distortion with an increased signal to noise ratio to 90db and a widened frequency response from 30Hz ~ 18 KHz

Class D audio amplifier offers greater than 90% power efficiency over traditional amplifiers. SMPS - Switch mode power supply provides high efficiency and low weigh. Among their advantages is their reduced physical size and lower heat dissipation. The DPA series is fully equipped with a protection circuit against short circuit, overload, power and DC output. They offer less than 1% THD, total harmonic distortion with an increased signal to noise ratio to 90db and a widened frequency response from 30Hz ~ 18 KHz.

Hi definition sound is achieved by using high impedance matching transformer and noise cancelling balance audio input. The total harmonic distortion is reduced to less than 0.1% THD, with a high signal to noise S /N ratio of over 100dB with optimum broadband frequency response of 65Hz ~ 20kHz.

DPA-430H are ideal for multi-zone applications where high power and large quantity of long-line speaker installation is required such as Airports Arena, shopping malls, transportation stadiums or any large scale facilities.

The DPA-430H offers 4 channels of High impedance Ideal for applications where high power and large quantity of long-line speaker installation is required such as Airports Arena, shopping malls, transportation stadiums or any large scale facilities.

Inter-M Americas Inc DPA-430H Features:

  • LCF (Low Cut Filter)
  • A 2 position LOW CUT FILTER, at 65Hz, and 400Hz, helpsto improve speech intelligibility and protects output from unwanted lowfrequencies.
  • CLASS-D
  • 1U rack size
  • Compact and lightweight form factor
  • Independent SMPS (switching-mode power supply) foreach channel
  • Balanced input Euroblock connection with link andlooping
  • 2 position LOW CUT FILTER, at 65Hz, and 400Hz
  • Low power consumption, low heat dissipation and lightweight
  • High power PA amplifier, 300W x 4, 1200 watts allchannels driven.
  • THD less than 0.03%
  • S/N. greater than 100dB
  • Protection circuitry (over heat, over current, speakershort, DC protection)
  • Various displays (-30dB, -10dB signal level, signalclip, protection LED indicator)
  • Remote power control
  • Adjustable volume control range (- 8 or -12dB) (Service personnel only)

Inter-M Americas Inc DPA-430H Specifications:

  • Rated Output Power: 300W x 4 channels
  • Output Voltage/Impedance: 100V / 33.3 O , 70V / 16.3Ohms
  • T.H.D (AES17)
  • Prated (300W, 1kHz): Less than 0.1%
  • 1/3 Prated (100W, 1kHz): Less than 0.03%
  • High Frequency Response (+1, -3dB): Over than 20kHz
  • Low Frequency Response
  • High Pass Filter Off (-3dB ±2dB): 65Hz
  • High Pass Filter On (-3dB ±2dB): 400Hz
  • Volume Control
    • 0dB ~ minimum (default)
    • 0dB ~ -12dB (with setting change)
  • S/N (20kHz LPF, A-WTD): Better than 100dB
  • Input Sensitivity/Impedance: 1V / 10k Ohms Balance
  • Operation Temperature: -10 degree Celsius ~ +40 degreeCelsius
  • Power Source: 120VAC or 220 –240VAC, 50/60Hz (Differsdepends on country)
  • Power Consumption: 250W (1/8 Pmax)
  • Weight (Set): 9.6kg / 21.2lb
  • Dimensions (Set)(WxHxD): 19" x 1.7" x 16.5"
