MuxLab 500017-Pro
S-Video/Audio ProAV Balun

OUR PART #:  MUX-500017-PRO

Our Price: $92.82
List Price: $110.00
You save 16%!
Be the first to review.
MuxLab 500017-Pro
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

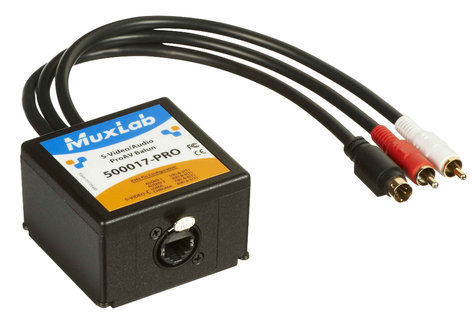

The S-Video/Audio ProAV Balun (500017-Pro) allows one (1) S-Video channel and one (1) stereo audio channel to be transmitted via unshielded twisted pair (UTP) cable up to 1000 ft (305m) in a point-to-point connection. The S-Video/Audio ProAV Balun features a robust metal enclosure, Ethercon RJ45 and heavy-duty, built-in cable leads for the more demanding professional audio-video environment. The S-Video/Audio ProAV Balun is compatible with the 500017, 500038 and 500038-WP for more versatile cabling.

Applications:

  • Rental & staging, video production, venues, podium systems, HD camcorders

MuxLab 500017-Pro Balun Features:

  • Rugged metal enclosure
  • Robust Ethercon RJ45
  • Heavy-duty built-in 12” cable harness
  • Up to 1,000 feet (305m) via Cat5e/6 UTP
  • 20 Hz to 20 kHz audio bandwidth
  • Compatible with 500017, 500038, 500038-WP

MuxLab 500017-Pro Balun Specifications:

  • Environment: S-Video equipment
  • Devices: DVD players, VCR, satellite receivers, MPEGplayers, laptops, notebooks, monitors, LCD projectors, CCD cameras, videoswitchers, sequencers, digital video servers, video multiplexers, S-Videosplitters, S-Video converters and other S-Video equipment.
  • Transmission: Transparent to the user.
  • Bandwidth: DC to 6 MHz (S-Video) / 20 Hz to 20 KHz(Audio)
  • Impedance: 75 ohms (S-Video) / 600 ohms min. (Audio)
  • Maximum Input: 1.1Vp-p (S-Video) / 1.1Vp-p (Audio)
  • Insertion Loss: Less than 2 dB per pair over the frequency range from DC to 6 MHz (S-Video) / Less than 2 dB per pair over the frequency range. (Audio)
  • Return Loss: Better than 15 dB over the frequency range (S-Video)
  • Common Mode Rejection:
      -  Greater than 40 dB over the frequency range (S-Video)
      -  Greater than 60 dB @ 1 KHz (Audio)
      -  Greater than 40 dB over the frequency and distance range (Audio)
  • Max. Distance – Cat5e/6 UTP: 1,000 ft. (305m)(S-Video) / 3,250 ft (990m) (Audio)
  • Pin Configuration (RJ45) EIA 568 A or B:
      -  S-Video Luma: pins 7[R] &8 [T] (S-Video)
      -  S-Video Chroma: pins 4[R]& 5 [T] (S-Video)
      -  Reverse Polarity Sensitive (S-Video)
      -  Audio 1: pins 1[R] & 2 [T] (Audio)
      -  Audio 2: pins 3 [R]& 6 [T] (Audio)
  • Cable – UTP:
      -  24AWG or lower solid copper twisted pairwire
      -  Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20pf/foot.
      -  Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Connectors:
      -  One (1) 4-pin Mini DIN S-Video 12” cablelead
      -  Two (2) RCA audio jacks for stereo audio
      -  One (1) Ethercon RJ45 for Cat5e
  • Temperature: Operating: 0º to 55º C. Storage: -20º to85º C. Humidity: up to 95%
  • Enclosure: Cast aluminium
  • Dimensions: 2.75” x 2.64” x 1.975” (6.99cm x 6.71cm x5.02cm) plus 12” ( 30.48 cm) cable lead
  • Weight: .542lb (245.85g)
  • Warranty: Lifetime
