MuxLab 500056-PRO
Component-Composite Video ProAV Balun

OUR PART #:  MUX-500056-PRO

Our Price: $109.70
List Price: $130.00
You save 16%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

MuxLab 500056-PRO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

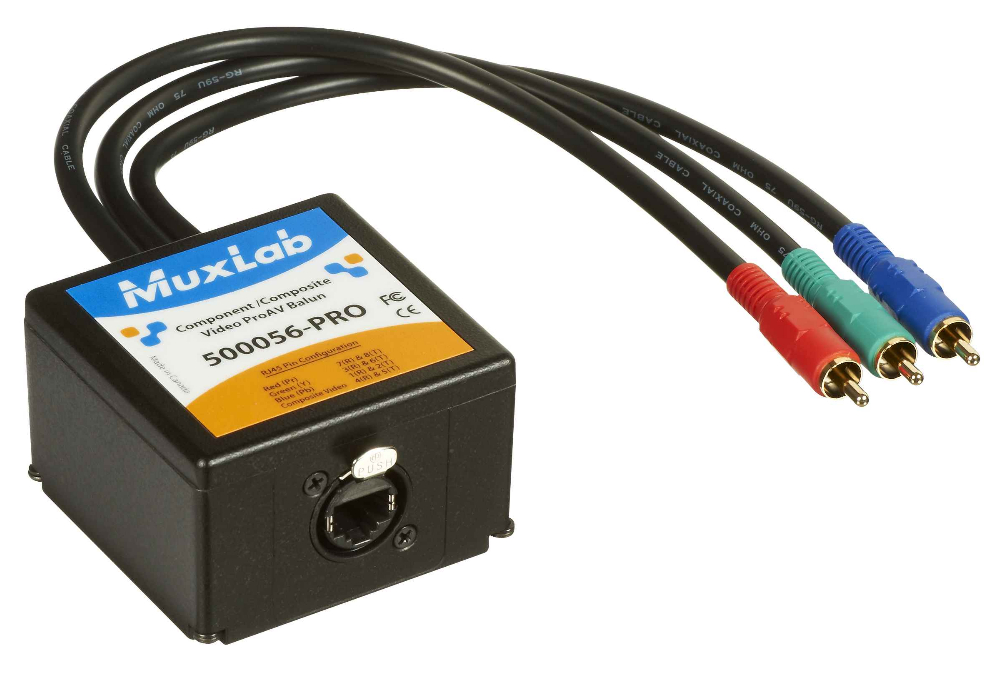

The Component-Composite Video ProAV Balun from MuxLab allows one component video (YPbPr or RGB) signal plus one composite video signal to be transmitted via one Cat5e/6 twisted pair cable for more cost-efficient cabling.

The 500056-Pro features Ethercon RJ45, ruggedized cast aluminum enclosure and built-in 12" (30cm) heavy duty AV cable leads for the demanding professional environment. The 500056-Pro may be used in pairs or in conjunction with other MuxLab component video baluns.

Applications:

  • Rental & staging
  • Mobile production
  • Venues

MuxLab 500056-PRO ProAV Balun Features:

  • Supports 1080i/p up to 500 ft (152m) via Cat5e/6
  • Supports composite video on fourth twisted pair
  • Ethercon RJ45 connector for cable strain relief
  • Ruggedized cast aluminum enclosure
  • Heavy-duty 12" (30cm) built-in cable leads
  • Compatible with 500056
  • Lifetime warranty

MuxLab 500056-PRO ProAV Balun Specifications:

  • Environment: Component Video (YPbPr), RGB Video (syncon green). 480i/p, 720p, 1080i/p. Line level Composite Video (NTSC, PAL,SECAM).
  • Devices: DVD players, satellite receivers, plasmadisplays, projectors, monitors, up-converters, amplifiers, switchers, hometheatre and other equipment supporting HDTV component video and/or CompositeVideo.
  • Transmission: Transparent to the user.
  • Bandwidth: Video: 60 MHz, 3 dB roll off. CompositeVideo: DC to 8 MHz
  • Maximum Input: 1.1Vp-p
  • Insertion Loss per pair:
      -  Component: Less than 3 dB per pair over the frequency range.
      -  Composite: Lessthan 2 dB per pair over the frequency range.
  • Return Loss: Greater than 15 dB over the frequencyrange
  • Common Mode Rejection: Component: -55 dB max.Composite: Greater than 40 dB @ 8 MHz
  • Max. Distance – Cat 5E/6 UTP & STP: 480i/p: 1,000ft (305m). 720p and 1080i/p: 500 ft (152m). Composite Video: 2,200 ft (670m).
  • Cable – Cat5/6 UTP/STP: 24 gauge or lower solidcopper twisted pair wire. Impedance: 100 ohms at 1 MHz. Maximum capacitance:20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Cable – Coax: Impedance: 75 ohms at 1 MHz
  • Connectors:
      -  Three (3) RCA-M connectors: Green (Y), Blue(Pb) , Red (Pr)
      -  One (1) RCA-F connector for Composite Video
      -  Ethercon RJ45S for twisted pair
  • Pin Configuration (Reverse polarity sensitive):
      -  Red(Pr): Pins 7 [R] & 8 [T]
      -  Green (Y): Pins 3 [R] & 6[T]
      -  Blue (Pb): Pins 1 [R] & 2 [T]
      -  Composite Video: Pins 4 [R] & 5 [T]
  • Temperature: Operating: 0° to 55°C. Storage:-20° to85°C. Humidity: up to 95%
  • Enclosure: Cast aluminium
  • Dimensions: 2.75” x 2.64” x 1.975” (6.99cm x 6.71cm x5.02cm) plus 12” (30cm) cable leads
  • Weight: .542lb (245.85g)
  • Regulatory: FCC, CE, RoHS.
  • Warranty: Lifetime
