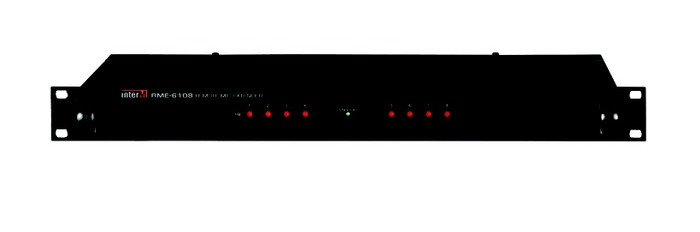

Inter-M Americas RME-6108 Remote Microphone Extender

The RME-6108 is a microphone expansion unit adding up to 8 additional microphone each. The RME-6108 is used to expand the microphone input ports of the PX-6216 digital public address matrix. Each of the four input ports of the PX-6212 can be expanded using one RME-6108. This will expand the total number of microphones that can be connected to the PX-6216 up to 32 possible microphone paging station inputs. Setup and control is easy and efficient with a straightforward Windows® interface. Ideal for large paging environments such as government offices, educational facilities, hospitals, malls, campus, transportation, correctional facilities and a variety of commercial and industrial applications.

Ideal for large paging environments such as government offices, educational facilities, hospitals, malls, campus, transportation, correctional facilities and a variety of commercial and industrial applications.

Inter-M Americas RME-6108 Features:

• 8 paging station expansion ports
• Can connect up to 8 microphone paging stations
• Channel Priority set via Windows PC Software
• Up to 4 units can be added to the PX-6216
• Adds up to 32 microphone paging stations
• RS-485 communication
• Long-distance transmitting to remote mic is possible [Max.1KM].
• 24 vdc operation

Inter-M Americas RME-6108 Specifications:

• Channel: 8ch
• Communications Protocol: RS-422 (Maximum 1km/3,280 feet)
• Operating Temperature: -10 Celsius ~ +40 Celsius
• Power Source: DC 24V
• Weight (Set): 2.8kg/6.17lbs
• Dimensions (Set): 19"(W) x1.7"(H) x 11"(D)
