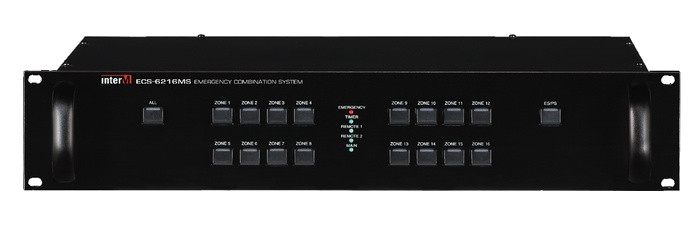

Inter-M Americas Inc ECS-6216MS
8-Bus Output Zone Expander

OUR PART #:  ECS-6216MS

The ECS-6216MS allows the addition of 16 output zones to the system 6000. Up to 9 units can be added giving the system up to 160 output zone capacity.
Learn More
Our Price: $498.91
List Price: $549.36
You save 9%!
Write the first review.
Inter-M Americas Inc ECS-6216MS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The ECS-6216MS allows the addition of 16 output zones to the system 6000. Up to 9 units can be added giving the system up to 160 output zone capacity. Each unit also offer 16CH GPI sensor input for messaging, event and scenario triggering.

Features:

  • 8 Audio Bus input
  • 16 output zones
  • 16CH GPI sensor input
  • RS-485 communication
  • Front panel manual control

Specifications:

  • Channel: 16CH
  • Communications Protocol
  • LINK IN/OUT: RS-485 (1km)
  • Source & Voice File: RS-232 (12m)
  • Fire Sensor: Dry Contact
  • Operating Temperature: -10 degrees Celsius ~ +40 degrees Celsius
  • Power Source: DC 24V, 600mA
  • Weight(SET): 4.3kg/9.5lbs
  • Dimensions (Set): 19"(W) x 3.5"(H) x 11"(D)
