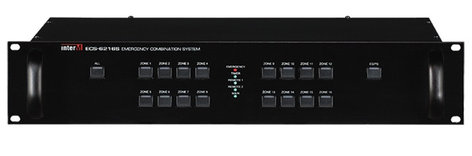

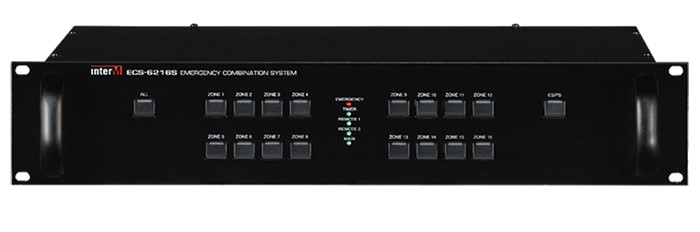

Inter-M Americas ECS-6216S 16-Channel Output Zone Expander Secondary Unit

The ECS-6216S output secondary unit allow the addition of 16 output zones to the single bus system 6000. Up to 9 units can be added to the ECS-6216P, giving the system up to 160 output zone capacity. Each unit also offer 16CH GPI sensor input for messaging, event and scenario triggering.

Features:

• Single bus input
• 16 output zones
• 16CH GPI sensor input
• RS-485 communication
• Front panel manual control

Specifications:

• Priority: Emergency>Timer>Remote 1>Remote 2>Main
• Channel: 16CH
• Communications Protocol
  • LINK IN/OUT: RS-485 (Maximum: 1km/3,280 feet)
  • RM INPUT (RM1, 2): RS-422 (Maximum: 1km/3,280 feet)
• SOURCE: RS-232 (Maximum: 12m/40 feet)
• Fire Sensor: Dry Contact
• Operating Temperature: -10c ~ +40c
• Power Source: DC 24V, 900mA
• Weight(SET): 4.3kg/9.5lbs
• Dimensions (Set): 19"(W) x 3.5"(H) x 11"(D)
