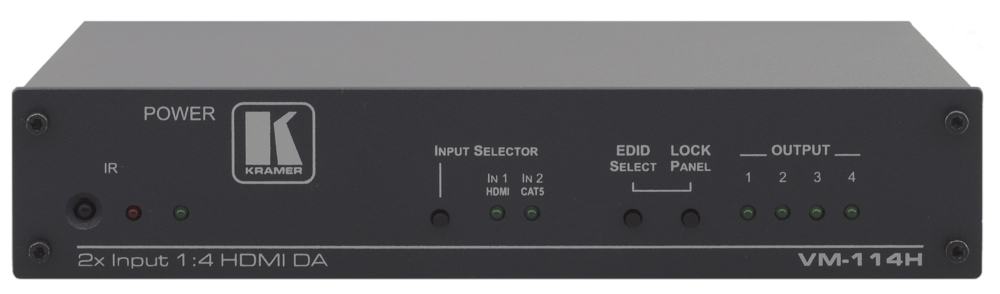

Kramer VM-114H
2 x 1: 4 HDMI/Twisted Pair Switcher & HDMI Distribution Amplifier

OUR PART #:  VM114H

The VM-114H is a switcher/distribution amplifier for HDMI and DGKat™ twisted pair signals.
Learn More
Our Price: $876.00
List Price: $1,095.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-114H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VM-114H is a switcher/distribution amplifier for HDMI and DGKat™ twisted pair signals. It reclocks and equalizes one of two selectable input signals and distributes it to four identical HDMI outputs.

Applications:

  • Home theater, presentation and multimedia applications.
  • Rental and staging.

Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. Kramer strongly recommends using their DGKat™ cables designed specifically for optimum performance.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • HDMI Support - Deep Color (on the HDMI input), x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
  • Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Active Input & Output LED Indicators.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
  • Flexible Control Options - Front panel buttons, RS-232, IR control sensor, remote included.
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a1U rack space with the optional RK-1 adapter.

Specifications:

  • Inputs: 1 HDMI connector; 1 DGKat™ on an RJ-45 connector.
  • Outputs: 4 HDMI connectors.
  • Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
  • Compliance with HDMI Standard: Supports HDMI and HDCP.
  • Controls: Input select button, EDID select button, panel lock button.
  • Indicator LEDs: IR communication, power, IN 1(HDMI), IN 2 (CAT 5), OUTPUT 1, 2, 3 and 4.
  • Power Consumption: 12V DC, 500mA.
  • Dimensions: 21.5cm x 7.5cm x 4.4cm (8.5" x 3.0" x 1.7") W, D, H.
  • Weight: 0.9kg (1.98lbs) approx.
  • Accessories: Power supply, bracket installation kit, RC-IR3 infrared remote control transmitter.
  • Options: RK-1 19” rack adapter.
