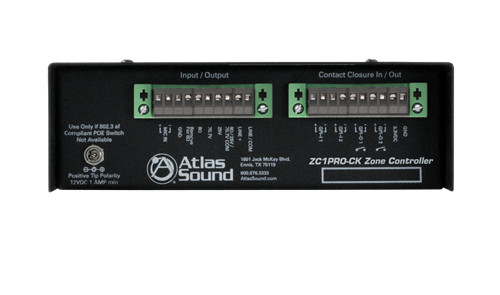

Atlas Sound ZC1PRO-CK
IP Addressable Single Zone Interface with Balanced Line Level Output


The Atlas Sound ZC1PRO-CK Zone Controller Pro is an analog gateway for Atlas Sound IP paging systems.
Learn More
Our Price: $904.82
List Price: $1,246.64
You save 27%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound ZC1PRO-CK
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound ZC1PRO-CK Zone Controller Pro is an analog gateway for Atlas Sound IP paging systems. This model is compatible with Atlas Sound's ControlKom©2.0 and Syn-App's SA Announce software.

The ZC1PRO-CK provides a line level output to connect to Atlas Sound commercial amplifiers and an 8 Ohms, 25V, 70.7V amplified output to drive small analog speaker zones. It also includes 2 GPI Inputs, 2 GPI Outputs and Microphone input for talk back applications. Power can be supplied via plug-in transformer (IPS-PSU-CK) or by 802.3af compliant PoE network switches.

All control features of the ZC1PRO-CK are software controlled.

Atlas Sound ZC1PRO-CK Features:

  • Use with ControlKom® 2.0 or Syn-Apps SA Announcesoftware to send live, prerecorded or ad hoc messages along with control datato Atlas Sound IP Speaker and zone controller end points over new or existingmulticast enabled local area networks.
  • Also compatible with SIP (session initiationprotocol) VoIP systems. Contact Atlas Sound for SIP configuration info.
  • Modular 2RU design allows for easy rack mounting andcable access
  • Line Level (600 Ohms), 8 Ohms, 25V, and 70.7V Outputs
  • 2 GPI Contact Closure Inputs, and 2 GPI Relay Outputs.

Atlas Sound ZC1PRO-CK Specifications:

  • Dimensions (HxWxD): 2.56" x 8" x 10"
  • Rack Space: 2RU (If ZCM-V2FP is Used)
  • Power Rating: 9 Watts RMS into an 8 Ohm Load w/12VDC Input
  • Inputs: RJ-45 Female on PCB
  • Outputs: 600 Ohms, 8 Ohms, 25V, or 70.7V
  • Power Source: IEEE 802.3af Compliant POE NetworkSwitches / Local 12VDC - 18VDC PSU
  • Network Control: Multicast Enabled Networks
  • Relay Output: 50V @ 500mA Max
