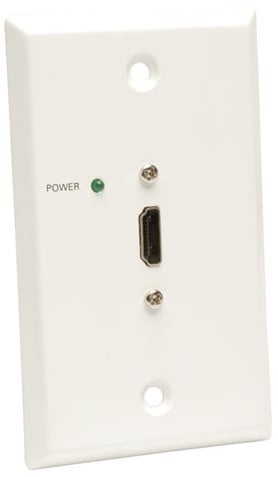

Tripp Lite B126-1P0-WP-1 HDMI over CAT5/CAT6 Passive Extender Wallplate Remote Receiver

OUR PART #: B126-1P0-WP-1 MFR #: B126-1P0-WP-1

Copied to clipboard

Tripp Lite's B126-1P0-WP-1 is a receiver wallplate that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. ...Read more

Tripp Lite B126-1P0-WP-1 HDMI Over CAT5/CAT6 Passive Extender Wallplate Remote Receiver Image 1
Tripp Lite B126-1P0-WP-1 HDMI Over CAT5/CAT6 Passive Extender Wallplate Remote Receiver Image 2
Tripp Lite B126-1P0-WP-1 HDMI Over CAT5/CAT6 Passive Extender Wallplate Remote Receiver Image 3
Tripp Lite B126-1P0-WP-1 HDMI Over CAT5/CAT6 Passive Extender Wallplate Remote Receiver
Our Price: $29.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Tripp Lite's B126-1P0-WP-1 is a receiver wallplate that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features RJ45 jacks for easy connection with patch cables; 110 punchdown not required. No external power required. Supports 24-bit True Color (8-bits per channel), HDCP, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

Features:

  • A 1080p (60Hz) signal can be transmitted up to 50 ft.
  • A 1080i (60Hz) signal can be transmitted up to 100 ft.
  • Cannot be used for a 3D signal
  • Transmit a 1080p (60Hz) HDMI signal to a monitor up to 50 ft. away using a single Cat5e/6 patch cable
    • For use with the B126-002 and B126-004 transmitter units
    • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
    • HDCP compatible
    • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
    • Supports 24-bit True Color (8-bits per channel)
    • No external power required
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
