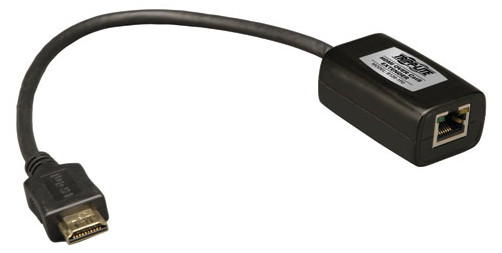

Tripp Lite B126-1P0 HDMI over CAT5/CAT6 Passive Extender

OUR PART #: B126-1P0 MFR #: B126-1P0

Copied to clipboard

The Tripp Lite B126-1P0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. ...Read more

Tripp Lite B126-1P0 HDMI Over CAT5/CAT6 Passive Extender Image 1
Tripp Lite B126-1P0 HDMI Over CAT5/CAT6 Passive Extender Image 2
Tripp Lite B126-1P0 HDMI Over CAT5/CAT6 Passive Extender
Our Price: $50.80
List Price: $54.88
You save 7%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Tripp Lite B126-1P0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) No power is required, and its built-in HDMI male connector plugs directly into a monitor without the need for an additional cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the built-in HDMI connector on the receiver unit directly to a display. Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

-A 1080p (60Hz) signal can be transmitted up to 50 ft.

-A 1080i (60Hz) signal can be transmitted up to 100 ft.

-Cannot be used for a 3D signal

Tripp Lite B126-1P0 Includes:

  • B126-1P0 HDMI Over Cat5 Passive Extender Remote Unit
  • Owner's manual

Tripp Lite B126-1P0 Features:

  • For use with B126-002 and B126-004 transmitter units.
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source.
  • HDCP and 3D compatible.
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • Supports 24-bit True Color (8-bits per channel).
  • No external power required.
  • Compatible with all operating systems.
  • Plug and play; No drivers required.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedulepurchases.

Tripp Lite B126-1P0 Specifications:

  • Overview
    • Display Style: Splitter
  • Physical
    • Product Warranty Period (Worldwide): 1-year limited warranty
    • Color: Black
  • Environmental
    • Operating Temperature Range: 32° to 104°F (0° to 40°C)
    • Storage Temperature Range: -4° to 140°F (-20° to 60°C)
    • Relative Humidity: 20 to 90%
  • Connections
    • Connector A: RJ45 (FEMALE)
    • Connector B: HDMI (MALE)
  • Chromebook Compatible: Yes
  • Warranty
    • Product Warranty Period (Worldwide): 1-year limited warranty

NOTE:

Specifications are subject to change without notice.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
