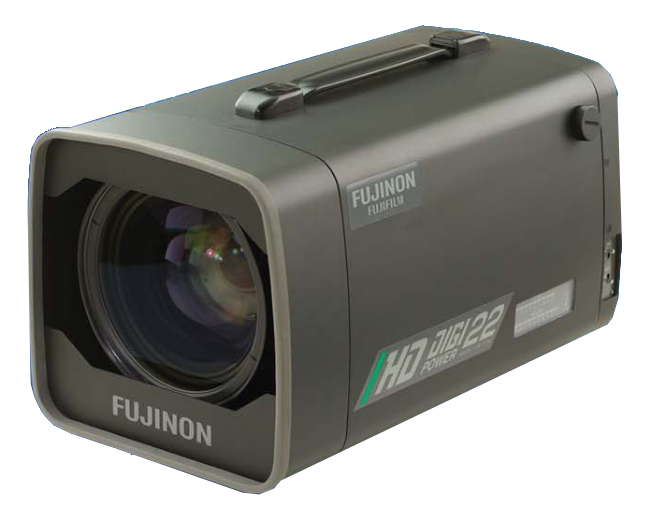

Fujinon Inc XA22x7BES
2/3" HDTV Fujinon Studio Lens (Box Type)

OUR PART #:  XA22X7BES

Compact studio lens designed for ENG style cameras features wide angle, high optical quality, fast quiet and precise servo zoom and focus.
Learn More

Call for price! Not available online.
List Price: $58,800.00

Similar Products

Compact studio lens designed for ENG style cameras features wide angle, high optical quality, fast quiet and precise servo zoom and focus. Comes with lens support bracket, RS-232 port for robotics and remotely controlled 2X range extender.

Features:

  • Digi Power
  • Digital Quick Zoom
  • HD Digital
  • Innerfocus
  • Digital Find System

Specifications:

  • Camera format: 2/3"
  • Focal length:
      -  1 ×  7 - 154 mm
      -  2 ×  14 - 308 mm
  • Zoom range: 22 ×
  • Extender: 2 ×
  • Maximum relative aperture:
      -  1 : 1.8 (7 - 116 mm)
      -  1 : 2.4 (154 mm)
  • M.O.D. from the front of lens: 0.8 m
  • Object dimensions at M.O.D. (16 : 9 Aspect ratio):
      -  1 ×  7 mm   1197 × 673 mm / 154 mm   54 × 31 mm
      -  2 ×  14 mm   599 × 337 mm / 308 mm   27 × 15 mm
  • Angular field of view (16 : 9 Aspect ratio):
      -  1 ×  7 mm   68°49' × 42°7' / 154 mm   3°34' × 2°0'
      -  2 ×  14 mm   37°49' × 21°48' / 308 mm   1°47' × 1°0'
  • Dimensions (H × W × L): 179 × 187 × 340 mm
  • Weight: 6.6 kg
  • Features:
      -  Find
      -  Dust proof and anti-fogging
