Product Overview

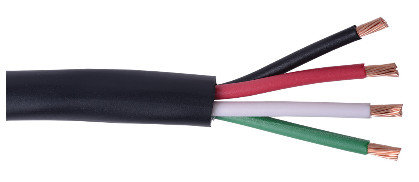

4 conductor 14 AWG stranded, twisted, and unshielded cable NEC type CL3, Suitable for Direct Burial and Sunlight Resistant. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725.
Applications:
- Outside Plant Speaker Level Audio
- 70 volt Speaker cabling
- Low voltage lighting
- Class 2 and Class 3 low voltage power
- Instrumentation and Control
Features:
- 9-strand annealed bare copper conductors
- Low density polyethylene insulation
- Twisted, unshielded
- UV stabilized PVC jacket
- NEC CL3, direct burial, sunlight resistant, RoHS compliant
- 1000 foot spools
Specifications:
- Conductor
- 14 AWG
- 19-strand annealed bare copper conductors
- Diameter: 0.069" | 1.75mm
- Electrical
- DC resistance: 2.76?/ 1000' | 9.05?/KM
- Mutual capacitance: 20.0 pF/FT | 65.47 pF/M
- Impedance: 78?
- Inductance: 0.16µH/FT | 0.52µH/M
- Velocity of Propagation: 55%
- Voltage rating: 300V
- Maximum current: 6.4A @ 25 °
- Insulation
- Polyethylene
- Wall thickness: 0.012" | 0.30mm
- Diameter: 0.093" | 2.35mm
- Regulatory
- NEC: CL3 75 °C
- Suitable for direct burial
- Sunlight resistant
- EU RoHS 2002/9
- 5/EC Compliant
- Color Code
- Packages
- Reel: 1000' | 305M
- Weight: 91 Lbs/1000' | 136 Kg/KM
- Assembly
- 4 conductors twisted
- Lay length: 4.0" | 100mm
- 3.0 twists per foot | 10.0 twists per meter
- Installation:
- Pull Tension: 123 Lbs | 548 N
- Bend radius: 3.15" | 80mm unloaded
- Bend radius: 6.30" | 160mm loaded
- Construct
- Applications
- General purpose and outdoor speaker level audio
- Outdoor 70V commercial speaker audio
- Outdoor rated Class 2 and 3 power
- Shield
- Performance
- Speaker level audio to 80 feet
- Jacket
- Polyvinyl chloride
- Colors: Black
- Wall thickness: 0.045" | 1.14mm
- Diameter: 0.315" | 8.00mm
- Final Outside Diameter (inches)
