TeachLogic IRV1200C
1-Channel IR Crescent Microphone System

OUR PART #  IRV1200C

Our Price: $451.39
List Price: $549.00
You save 18%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

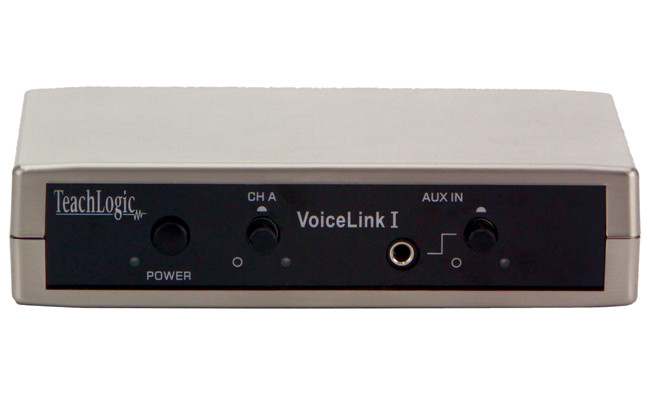

The VoiceLink I system will expand your multi-media sound system to include voice reinforcement via an infrared wireless microphone. The VoiceLink I is a preamp-only receiver and is designed to be plugged into an existing power amplifier or the input of a multi-media sound system. With a VoiceLink I infrared wireless microphone system, the teacher’s voice will be clearly heard throughout the room with ease. And the auxiliary input on the front panel allows the input of an iPod™, computer, or DVD to supplement the instructional program.

Includes:

  • Single channel infrared wireless receiver (IR-100)
  • Crescent transmitter/microphone with DuracellNiMH battery (IRT-30)
  • Plug-in microphone (PM-505)
  • Drop-in battery charger (BRC-50)

Specifications:

  • Receiver Input: Infrared FM
  • Modulation: FM Wide-band
  • Reception Frequencies: Ch. A: 2.08 MHz
  • Infrared Wavelength: 850 nm
  • Tone Signal: Ch. A: 32.768 KHz
  • De-emphasis: 50 µs
  • Frequency Response: 50 Hz, -13KHz, ± 3dB
  • S/N Ratio: ›65 dB
  • THD: ‹1% @1KHz
  • Nominal Deviation: ± 10 KHz
  • Maximum Deviation: ± 25 KHz
  • External Sensor Input: Two, RCA
  • Aux Input: 3.5mm with Gain Control, Front Panel
  • Line Output
    -Balanced Line Level, Three Pin Phoenixconnector
    -Unbalanced Line Level, RCA
  • Power Supply: 12VDC / 0.6A / 7.2W
  • Dimensions: 5" W x 1" H x 4 ½ " D
  • Weight: 9.1 oz.
  • Enclosure: ABS

TeachLogic IRV1200C
1-Channel IR Crescent Microphone System

OUR PART #  IRV1200C

Product Information:

The VoiceLink I system will expand your multi-media sound system to include voice reinforcement via an infrared wireless microphone. The VoiceLink I is a preamp-only receiver and is designed to be plugged into an existing power amplifier or the input of a multi-media sound system. With a VoiceLink I infrared wireless microphone system, the teacher’s voice will be clearly heard throughout the room with ease. And the auxiliary input on the front panel allows the input of an iPod™, computer, or DVD to supplement the instructional program.

Includes:

  • Single channel infrared wireless receiver (IR-100)
  • Crescent transmitter/microphone with DuracellNiMH battery (IRT-30)
  • Plug-in microphone (PM-505)
  • Drop-in battery charger (BRC-50)

Specifications:

  • Receiver Input: Infrared FM
  • Modulation: FM Wide-band
  • Reception Frequencies: Ch. A: 2.08 MHz
  • Infrared Wavelength: 850 nm
  • Tone Signal: Ch. A: 32.768 KHz
  • De-emphasis: 50 µs
  • Frequency Response: 50 Hz, -13KHz, ± 3dB
  • S/N Ratio: ›65 dB
  • THD: ‹1% @1KHz
  • Nominal Deviation: ± 10 KHz
  • Maximum Deviation: ± 25 KHz
  • External Sensor Input: Two, RCA
  • Aux Input: 3.5mm with Gain Control, Front Panel
  • Line Output
    -Balanced Line Level, Three Pin Phoenixconnector
    -Unbalanced Line Level, RCA
  • Power Supply: 12VDC / 0.6A / 7.2W
  • Dimensions: 5" W x 1" H x 4 ½ " D
  • Weight: 9.1 oz.
  • Enclosure: ABS
