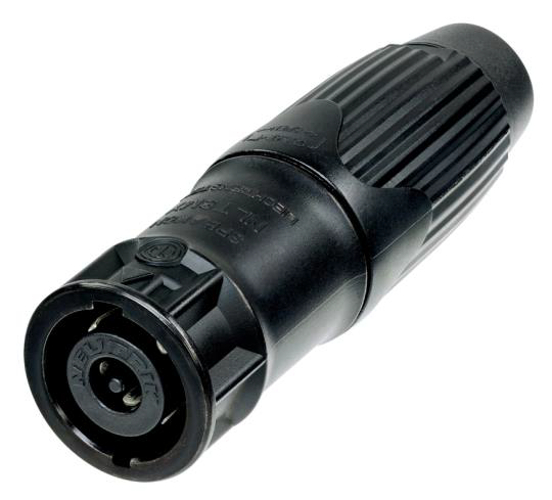

Neutrik NLT8MX-BAG
Bag of 8-Pole Male Speakon-STX in Black & Silver

OUR PART #:  NLT8MX-BAG

8 pole male cable connector, black-chrome metal housing...
Learn More
Our Price: $23.34
List Price: $37.14
Save up to 47% when you order by quantity!
  • Buy 25: $21.08 each.
  • Buy 50: $20.33 each.
  • Buy 100: $19.58 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NLT8MX-BAG
Qty:
Similar Products

8 pole male cable connector, black-chrome metal housing, chuck type strain relief

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Neutrik NLT8MX-BAG Features:

  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Robust and durable all metal housing
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6mm² (AWG10) wires
  • Mate with all available speakON products

Neutrik NLT8MX-BAG Specifications:

  • Contact resistance:< 2 mO (after lifetime) mO (inner)
  • Dielectric strength:4 kVdc (peak)
  • Insulation resistance:> 10 GO
  • Rated current per contact:40 A rms continuous
  • Rated current per contact:50 A audio signal, duty cycle 50 %
  • Rated voltage: 250 V (Insulation)
  • Mechanical:
    • Cable O.D.:8 - 20 mm
    • Cable retention:= 220 N (subject to cable O.D. and material)
    • Lifetime:> 5000 mating cycles
    • Wire size:6 mm²
    • Wire size:10 AWG
  • Environmental:
    • Temperature range: -30 °C to +80 °C

NOTE: speakON is NOT to be used as an AC mains or power supply connector!
