DPA Microphones LMK4060-B
Minature Omni Hi Sensitivity Microphone Kit with Microdot Connector and XLR Adaptor

OUR PART #:  LMK4060-B

The LMK4060 Lavalier Microphone Kit is perfect for broadcasters, TV studios, news anchors and other public speakers.
Learn More
Our Price: $519.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones LMK4060-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The LMK4060 Lavalier Microphone Kit is perfect for broadcasters, TV studios, news anchors and other public speakers.

A robust and unobtrusive solution, the tiny 4060 mic is placed in the smallest holder on the market where it is protected from rough handling.

The miniature condenser mic is omnidirectional and picks up the sound perfectly, no matter which direction the microphone is placed in.

The holder is designed to minimize clothing noise, and is prepared for both left and right mounting on lapels, shirts, and neckties.

Two different protection grids are included in the kit. By changing these grids you can acoustically modify the microphone's response according to placement.

Offering great detail and resolution, the DPA 4060 omni miniature is very natural sounding. The 4060 has a very low noise floor, impressive sensitivity and can handle high SPLs. For full technical specs, please click the Specifications tab above.

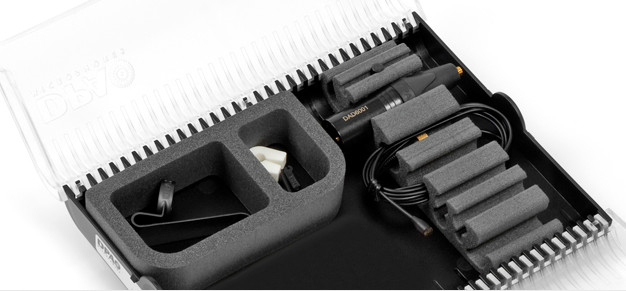

Includes:

  • 4060 omnidirectional microphone with 3 meter cable
  • DAD6001-BC adapter, MicroDot to 3-pin XLR (P48) with belt clip
  • DMM0017 Miniature mic holder
  • DUA6001 Grid, soft boost
  • DUA6002 Grid, high boost

Specifications:

  • Directional characteristics:  Omnidirectional
  • Principle of operation:  Pressure
  • Cartridge type:  Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB:  Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz.
  • Sensitivity, nominal, ±3 dB at 1 kHz:  20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equiv. noise level ITU-R BS.468-4:  Typ. 35 dB (max. 38 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):  71 dB(A)
  • Total harmonic distortion (THD):  < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine
  • Dynamic range:  Typ. 100 dB
  • Max. SPL, peak before clipping:  134 dB
  • Output impedance:  30 to 40 ohm
  • Cable drive capability:  Up to 300 m (984 ft)
  • Connector:  MicroDot
  • Color:  Black or white
  • Microphone weight:  0.26 oz (incl. cable and MicroDot connector)
  • Microphone diameter:  0.21"
  • Microphone length:  0.5"
  • Cable length:  5.9 ft
  • Polarity:  Positively increasing sound pressure produces positive going voltage on MicroDot pin
