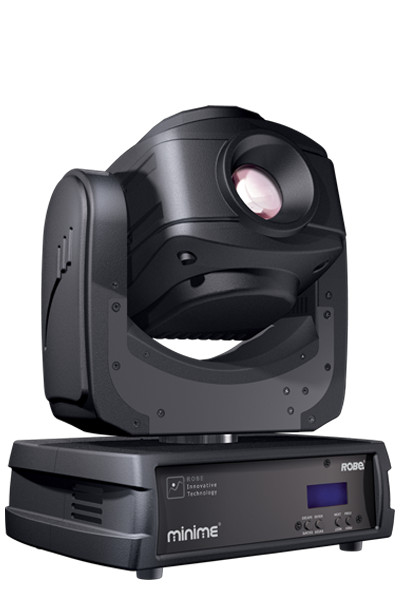

Robe Lighting, Inc Robin MiniMe
Compact LED Digital Luminaire with Video Output


Call for price! Not available online.

With Robe Lighting's Robin MiniMe®, an effects lighting fixture offering the exceptional added feature of full video output, club, bar, and retail lighting has taken another step into the digital future. It's a neat, small, and fast-moving light fixture that's LED driven with a 20,000 hour (approx.) lifetime source. The on-board micro-media server digitally generates colors, gobos, and beam shapes, plus custom artwork, still photographs, and video can also be easily uploaded for projection, whilst live video can be streamed via its HDMI input.

Robe Lighting Robin MiniMe Specifications:

  • Light Engine:
    • Light source: RGB LED device
    • Light output: 300 ANSI lumens
    • Rated light source life: 20,000 hours
  • Digital Gobo/Image Projection Output:
    • Aspect ratio: 16:10
    • Resolution: WXGA (1280x800)
    • Beam Angle: 16°
    • Throw ratio: 3.5:1
    • Contrast ratio: 700:1
    • Display colors: 16.7 million colors
  • Electrical:
    • Auto-switching power supply
    • Input voltage range: 100–240 V AC, 50–60 Hz
    • Max. Power Consumption: 90 W @ 230 V
    • cETLus compliant
    • CE compliant
  • Mechanical:
    • Height: 345 mm (13.6") – head in vertical position
    • Width: 249 mm (9.8")
    • Depth: 191 mm (7.5")
    • Weight: 6 kg (13.2 lbs)
  • Thermal:
    • Operating ambient temperature range: 0–40 °C
    • Maximum housing temperature: 60 °C
  • Connection:
    • DMX data in/out: Locking 5-pin XLR
    • 2 x USB 2.0 connector (series A)
    • ArtNet: RJ 45 (Neutrik Ethercon)
    • External video input: 1 x HDMI
    • AC power in/out: Neutrik powerCon®
  • Hardware:
    • Raspberry Pi Model B 512MB RAM
  • Operation System:
    • Linux OS
  • Graphic Engine:
    • Digital gobo wheel with gobos, images, and videos
    • Gobo rotation and indexing
    • Video speed control
    • RGB or CMY color mixing
    • Virtual color wheel with pre-programmed 234 colors including 7.500 K white
    • Color effect wheel with wide range of onboard color effects (color transitions and cross-fades, multiple color images, rainbow effects)
    • Effect wheel with wide range of graphic effects (Kaleidoscopic effect, fish eye, iris, zoom, swirl effect, pixelation effect, cross-stitching, posterization, and more…)
    • Effect speed control
    • Horizontal/Vertical keystoning
    • Smooth dimmer
    • Shutter and strobe effects
  • Control and Programming:
    • Upload and projection of custom artwork, still photographs, and videos
    • Live input via external HDMI
    • Setting & Addressing: two-row LCD display & 4 control buttons
    • Protocols: USITT DMX-512, RDM, ArtNet
    • Optional wireless external module available: CRMX™ technology from Lumen Radio
    • Control channels: 22
    • 1 DMX protocol mode
    • Ethernet port: Art-Net, ready for ACN
  • Electromechanical Effects:
    • Motorized focus
    • Pan: 450°
    • Tilt: 270°
  • Rigging:
    • Mounting points: 1 pair of ¼-turn locks
    • 1 x Omega bracket with ¼-turn quick locks
