Mackie DL806
8-Channel Digital Live Sound Mixer with for iPad with Lightning Connector

OUR PART #:  DL806-LIGHTNING

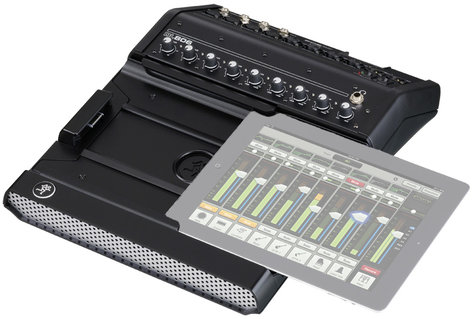

DL806 Angled View
DL806 Front View
DL806 Top View iPad Slide

Click a thumbnail to see more images. (6 total)

Our Price: $499.99
List Price: $629.99
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mackie DL806
Qty:
In Stock

Similar Products

The Mackie DL806™ with Lightning Connector redefines live mixing by combining the proven power of a full-featured digital mixer with the unmatched ease and mobility of an iPad.® With 8 boutique-quality Onyx mic preamps and the performance of 24bit Cirrus Logic® AD/DA converters, you have unparalleled sound quality. Seamless wired to wireless iPad control means you can mix from anywhere in the venue. This gives you the mobile freedom to control not only the mix, but also powerful plug-ins like EQ, dynamics, effects and more.  Forget bulky consoles and racks of gear. The power is at your fingertips.

NOTE:  Images shown above are for illustrative purposes only; iPad shown is NOT included with purchase. For more information on this and other products, contact your Sales Representative.

Mackie DL806 Features:

  • Proven Hardware That Sounds Great:
    • 8 Onyx mic preamps
    • High-end Cirrus Logic® converters
    • Ultra low-noise, high-headroom design
    • 4 aux sends for monitor mixes
    • Master L/R output for mains
  • Tons of Built-In Processing:
    • Choice of powerful, touch-sensitive plug-ins
    • 4-band EQ, gate and compression on inputs
    • 31-band GEQ and comp/limiter on outputs
    • Global reverb and delay
  • Wireless Mixing:
    • Seamless wired to wireless mixing
    • Tune the room from anywhere
    • Get on stage to ring out monitors
    • Personal monitor mixing with access control ability
    • Use up to 10 wireless devices simultaneously
  • Total Control From Your iPad, iPhone, or iPod Touch:
    • Intuitive Master Fader™ app for all iPad models
    • My Fader™ app for quick control from iPhone or iPod touch
    • “Grow and Glow” visual feedback
    • Preset and snapshot recall
    • Record the mix to the iPad for instant sharing
    • Integrate music from any app into the mix
  • Install Friendly Features:
    • PadLock™ feature locks down iPad for permanent installs
    • Industry standard Kensington lock secures mixer
    • Compact footprint saves precious workspace
      • 15.5" x 11.5" x 3.9"
      • 6.9 lbs / 3.2 kg

Mackie DL806 Specifications:

  • General Digital:
    • Sample Rate:  48 kHz
    • A/D/A Bit Depth:  24-bit
    • System Latency:  1.5 ms
  • Frequency Response:
    • All Inputs to All Outputs:  ±0, -1dB, 20 Hz to 20 kHz
  • Distortion (THD):
    • Mic Input to Main Output, 1 kHz, -1dBFS:  <0.005%
  • Noise/Dynamic Range/Signal-to-Noise Ratio:
    • Equivalent Input Noise (EIN), 150 Ohm Termination:  -128dBu
    • Mic Input to Main Output (A-Weighted):
    • Channels and Main Faders at Unity:  -79dBu
    • Faders Down:  -90dBu
    • Crosstalk:
      • Adjacent Inputs:  <-120dB @ 1 kHz
      • Outputs:  <-105dB @ 1 kHz
    • Phones Level Pot Feedthrough @ Minimum Travel:  <-75dB
    • Signal-to-Noise Ratio (ref +4dBu, one channel and main fader at unity, A-weighted):  92dB
    • Dynamic Range (one channel and main fader at unity, A-weighted):  109dB
    • CMRR:  <70dB @ 1 kHz (60dB gain)
  • Analog Inputs 1 - 8:
    • Connectors:
      • 1-4:  XLR Balanced
      • 5-8:  Combo XLR/TRS Balanced
    • XLR Mic Pre:  Onyx
    • Input Impedance:
      • 1-4:  3 kOhms
      • 5-8:  3 kOhms (XLR); 30 kOhms (1/4")
    • Max Input Level:
      • XLR:  +21dBu
      • 1/4":  +30dBu
    • Gain:
      • XLR:  0 to 60dB
      • 1/4":  -20 to 40dB
    • 48V Phantom Power (XLR):  48 VDC, 10 mA max per mic, with up to eight simultaneously. 5 mA max per mic, with up to 16 simultaneously
  • Analog Main Out L/R:
    • Connectors:  XLR Balanced
    • Output Impedance:  600 Ohms
    • Max Output Level:  +21dBu
  • Analog Aux Sends 1-4:
    • Connectors:  1/4" TRS Impedance Balanced (supports balanced/unbalanced operation)
    • Output Impedance:  240 Ohms Balanced, 120 Ohms Unbalanced
    • Max Output Level:  +21dBu
  • Analog Headphone Out:
    • Connector:  1/4" TRS Stereo
    • Max Output Level:  +18dBu into 600 Ohms; +19.5dBu max into 100 Ohms
  • Networking:
    • Connector:  100 MB Ethernet
    • Control:  Complete
    • Simultaneous Control:  10 iOS Devices
  • NOTE:  For complete specifications on this product, please refer to the attached Specification Sheet under the Documentation Tab
