Soundsphere Loudspeakers Q-Combo 5
Omni Speakers for High SPL

OUR PART #:  Q-12A-COMBO5

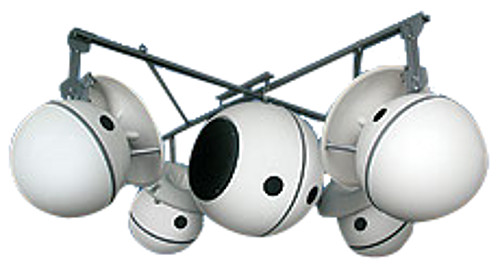

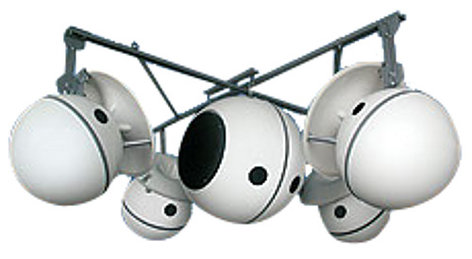

The Q-12A Q-Combo 5 combines 4 model Q-12A and 1 model Q-SB2 sub-bass loudspeakers in one package.
Learn More

Call for price! Not available online.

The Q-12A Q-Combo 5 combines 4 model Q-12A and 1 model Q-SB2 sub-bass loudspeakers in one package.

The Q-12A omnidirectional loudspeaker provides a powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. The Q-12A is also available in a weatherproof configuration (Q-12AWR) for outdoor use, featuring a protective screen over the holes and driver to prevent birds from nesting in the speaker.

Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97dB 1W/1m) and high SPL capability (121dB 250W/1m), and utilizes Soundsphere's exclusive patent-pending Poly-exponential Incidence Reflector. This loudspeaker can be mounted using a hanging kit or mounting bracket and comes in both standard and custom colors.

Applications include gymnasiums, ice rinks, transportation terminals, factories and nightclubs.

Specifications:

  • Sensitivity: 97dB SPL; 1 Watt/1 meter
  • Maximum SPL: 121dB; 250 Watts/1 meter
  • Power Handling: 250 Watts RMS
  • Frequency Response: 60Hz to 16kHz ± 6dB
  • Coverage: 180° vertical
  • 360° horizontal
  • Rated Impedance: 8 ohms
  • Weight: 39 lbs. (17.6 kg)
  • Size: 25" (H) x 22" (Sphere Diameter) x 26" (Reflector Diameter)
  • Driver: 12" true coaxial
    (LF and HF share common magnetic circuit)
  • Material: Enclosure and reflector are fiberglass with gelcoat finish;rust-resistant hardware
