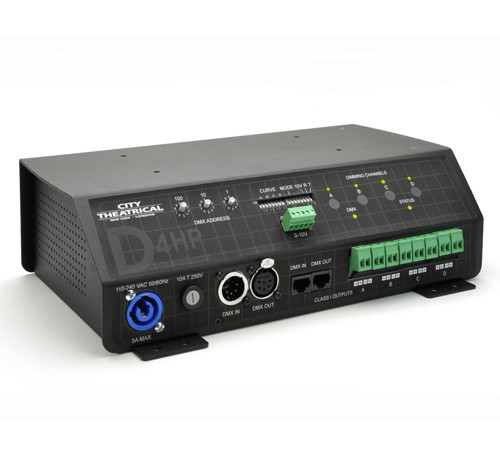

City Theatrical D4 HP DMX512 Dimmer
with 12V Terminal Blocks

OUR PART #:  5750

The D4 HP Dimmer combines all of the functionality of our D4 Dimmer with higher output power and an integral 40A power supply in one unit.
Learn More
Our Price: $833.00
List Price: $980.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


City Theatrical D4 HP DMX512 Dimmer
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The D4 HP Dimmer combines all of the functionality of our D4 Dimmer with higher output power and an integral 40A power supply in one unit. Designed for surface mounting to scenery, the angled control surface is both visible and accessible in tight spaces and corners. This workhorse is the perfect self contained unit for the heavy demands of theatrical and touring events.

The D4 HP Dimmer is compatible with both DMX512 and 0-10VDC analog architectural style control. Both RJ45 and 5PXLR connectors are standard for DMX connection. Other features include: Four dimming modes: Linear and ISL for incandescent use, Non-Dim (on/off) -for relays, solenoids etc., and LED. It also provides four variable smoothing rates and five TV/Film modes for ultra-smooth low end dimming and flicker free performance with LED tape.

110-240VAC input. 10A max output per channel, 40A max output per device.

City Theatrical DMX512 Dimmer Features:

  • Four dimmer output channels
  • Each channel individually protected againstover-current
  • Each channel individually protected againstover-temperature
  • Dimmer resolution 16-bit
  • LED Smoothing Modes (Four Settings)
  • Individual DMX addresses
  • Fully RDM enabled
  • Individual bump buttons
  • BCD DMX Addressing (9POS)
  • Dip Switch, Curve Selection (4POS)
  • Dip Switch, LED Curve Selection
  • LED indicators
  • Neutrik PowerCON connector for mains power cord
  • DMX Input/Output via 5PXLR and RJ45
  • 0-10VDC Architectural Style Analog via 5P screwterminal
  • Dimming Channels 2P screw terminals (2 x ea) -(Optional 30A Anderson Power Pole Connectors)
  • NEMA 1 Aluminum enclosure
  • RoHS Compliant

City Theatrical DMX512 Dimmer Specifications:

  • Output Channels: 4
  • Input Voltage: 100 ~ 240VAC 50/60Hz
  • Max Output per Chanel: 10A
  • Max Dimmer Output: 40A
  • Size: L x W x H  12.25" x 8.88" x 4"
  • Weight   7 lbs
  • Power Connections: Phoenix Screw Terminals or 30AAnderson Power Pole
  • Output Connections: Phoenix Screw Terminals or 30AAnderson Power Pole
  • DMX Connections: 5 PIN XLR - RJ45
  • User Interface: Rotary/DIP Switches
  • DMX Address: Yes
  • Curve Selection: Yes
  • Film & Video Modes: Yes
  • DMX Termination: Yes
  • Show ID: N/A
  • Bump Buttons: Yes
  • Pilot Lights: Yes
  • Status Lights: Yes
  • Smoothing Settings: Yes - 6 Variable
  • Stand Alone Settings: N/A
  • RDM: Yes
  • Compliance: ETL, CE, FCC, RoHS
  • Reset Switch: Yes
  • Power Supply: Included
