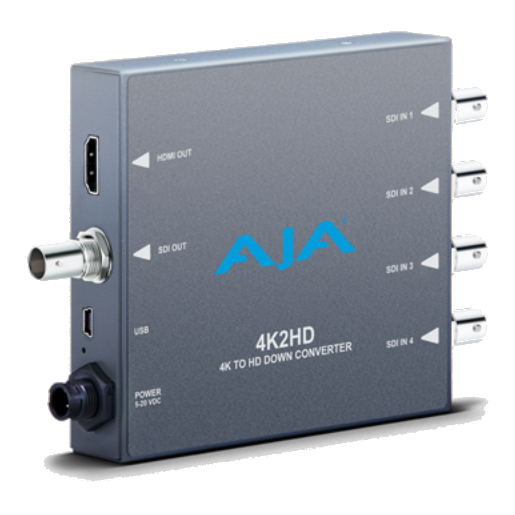

AJA Video Systems Inc 4K2HD
4K to HD Down Converter

OUR PART #:  4K2HD

AJA's 4K2HD downconverts professional SDI 4K/UHD signals to HD resolution using AJA’s high-quality scaling for cost-effective monitoring and conversion.
Learn More
Our Price: $795.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc 4K2HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA's 4K2HD downconverts professional SDI 4K/UHD signals to HD resolution using AJA’s high-quality scaling for cost-effective monitoring and conversion. 4K2HD’s HD-SDI and HDMI outputs are both live all the time, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast. 4K2HD outputs SDI and HDMI simultaneously. 4K2HD supports high frame rate (HFR) 4K inputs at 50 and 60fps and converts the HD output to 25 and 30fps for accurate viewing. 4K2HD's configuration options can extract an HD resolution image from the 4K input to provide a one-to-one pixel image for 4K focus checks on HD displays. Configuration can be set remotely via AJA MiniConfig software control over USB.

Features:

  • 4K (4096x2160) and UltraHD (3840x2160) support
  • Downconversion for supporting 4K on HD-SDI and HDMIdevices
  • Simultaneous HD-SDI and HDMI output
  • Aspect ratio conversion from full 4K to HD
  • Supports 4K/UHD 50/60fps high-framerate input formats
  • Configurable via AJA MiniConfig software for Mac andPC
  • Uses 5-20VDC power (DWP-U-R1 universalpower supply included)
  • 5-year warranty

Specifications:

Input Formats - 4K Inputs supported:

4 x 1.5GHz SDI:

  • 4 x 1920x1080 p, 4:2:2, 23.98, 24, 25, 29.97, 30
  • 4 x 1920x1080 psf, 4:2:2, 23.98, 24, 25, 29.97, 30
  • 4 x 2048x1080 p, 4:2:2, 23.98, 24
  • 4 x 2048x1080 psf, 4:2:2, 23.98, 24

2 x dual-stream 3GHz SDI (level B):

  • 2 x 2 x 1920x1080 p, 4:2:2, 23.98, 24, 25, 29.97, 30
  • 2 x 2 x 1920x1080 psf, 4:2:2, 23.98, 24, 25, 29.97,30
  • 2 x 2 x 2048x1080 p, 4:2:2, 23.98, 24
  • 2 x 2 x 2048x1080 psf, 4:2:2, 23.98, 24

4 x 3GHz SDI:

  • 4 x 1920x1080 p, 4:2:2, 50, 59.94, 60 (25, 29.97, 30output)
  • 4 x 1920x1080 p, 4:4:4, 23.98, 24, 25, 29.97, 30
  • 4 x 1920x1080 psf, 4:4:4, 23.98, 24, 25, 29.97, 30
  • 4 x 2048x1080 p, 4:4:4, 23.98, 24
  • 4 x 2048x1080 psf, 4:4:4, 23.98, 24

HD Inputs supported (4:2:2 if Single Link or 4:4:4 if Dual Link)

  • 720p 50, 59.94
  • 720p 23.98, 24, 25, 29.97, 30, 50, 59.94
  • 1080i 25, 29.97, 30
  • 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • 1080psf 23.98, 24, 25, 29.97, 50, 59.94, 60
  • SD Inputs Supported:
    • 525i
    • 625i
  • Video Inputs: 3G, HD, and SD-SDI (auto-selected), 4xBNC
  • Video Output:
    • 3G, HD, and SD-SDI, 1x BNC
    • HDMI v1.4, 30/36 bits per pixel, RGB or YUV
    • HDMI Standard Type A connector
  • Audio Inputs: SDI embedded audio, 24-bit, 8-channel
  • Audio Outputs:
    • SDI embedded audio, 24-bit,8-channel
    • HDMI embedded audio, 24-bit, 8-channel
  • Power: +5VDC Regulated, 3 Watts, Power SupplyRequired (included with purchase)
  • Size: 5.76” x 4.02” x 0.90” (146 × 102 × 23 mm)
