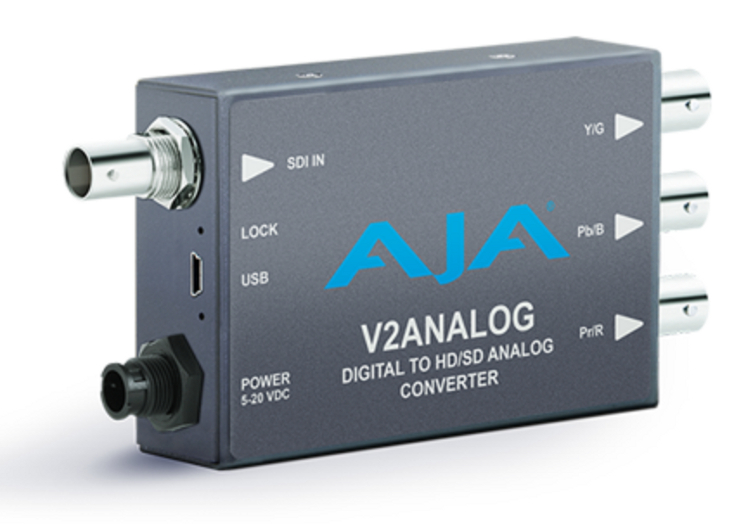

AJA Video Systems Inc V2Analog
SDI Digital to HD/SD Component / Composite Analog Mini Converter with Power Supply

OUR PART #:  V2-ANALOG

Our Price: $345.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc V2Analog
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA V2Analog is a high-quality digital to analog video converter that's a great solution for integrating analog equipment such as monitors and tape decks into digital workflows. The V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. The V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

NOTE: The AJA V2Analog does NOT up-convert or down-convert between SD and HD resolutions - only digital to analog signal conversion is supported.

AJA V2Analog Features:

  • 10-bit AJA quality
  • Low power, compact size
  • HD/SD-SDI input
  • YPbPr/RGB Component or Composite output
  • Configurable via USB and AJA Mini Config software for Mac and PC
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5-year warranty

AJA V2Analog Specifications:

  • Formats:
    • 525i/625i, 1080i 50/59.94/60 Hz
    • 1080psf 23.98/24/25 Hz
    • 720p 50/59.94/60 Hz
  • Inputs: HD/SD-SDI, SMPTE-259/292/296M, 1x BNC
  • Outputs:
    • HD component YPbPr, RGB (SMPTE-274), BNC
    • SD component (Betacam, EBU-N10)/composite/YC (S-Video), BNC
  • User Controls:
    • External Dipswitch
    • Control (Local/Remote)
    • Component/Composite (SD Only)
    • Format (YPbPr/YC or RGB)
    • Pedestal Present (on/off) (SD Only)
  • Power: +5-20 VDC, 3 watts
  • Dimensions: 5.1" x 2.4" x 1" (130 x 61 x 25 mm)
