AJA Video Systems Inc V2Digital
Analog to SD/HD-SDI Mini Converter with Power Supply


The AJA V2Digital is a high-quality analog to digital video converter that's great for facilities needing to integrate signal types.
Learn More
Our Price: $345.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

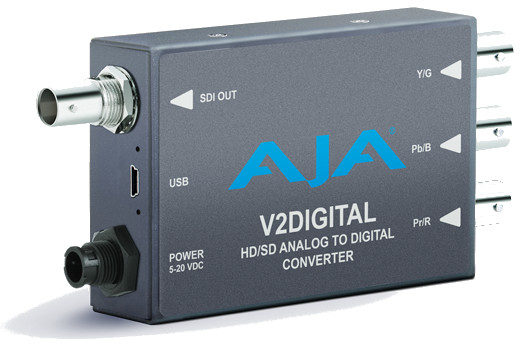

AJA Video Systems Inc V2Digital
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA V2Digital is a high-quality analog to digital video converter that's great for facilities needing to integrate signal types. The V2Digital offers high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions, utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion. The V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources. The comb filter can be switched to 2-line or notch modes for minimum delay requirements. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

AJA V2Digital Features:

  • Low cost, high quality 10-bit Universal A/D Conversion
  • YPbPr/RGB Component or Composite input
  • HD/SD-SDI output
  • 4-line Adaptive Comb Filter
  • Full 10-bit Data path, 2x Oversampling
  • YPbPr, Betacam, or RGB Component Formats
  • NTSC or PAL Composite Formats
  • AGC Mode
  • Configurable via USB and AJA MiniConfig software for Mac and PC
  • Color Bar Generator
  • Low power, compact size
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5-year warranty

AJA V2Digital Specifications:

  • Formats:
    • 525i/625i, 1080i 50/59.94/60 Hz
    • 1080psf 23.98/24/25 Hz
    • 720p 50/59.94/60 Hz
  • Inputs:
    • HD component YPbPr, RGB (SMPTE-274), BNC
    • SD component (Betacam, EBU-N10)/composite/YC (S-Video), BNC
  • Outputs: HD/SD-SDI, SMPTE-259/292/296M, 1x BNC
  • User Controls:
    • External Dipswitch
    • Control (Local/Remote)
    • Component/Composite (SD Only)
    • Format (YPbPr/YC or RGB)
    • Pedestal Present (on/off) (SD Only)
  • Power: +5-20 VDC, 3 watts
  • Dimensions: 5.1" x 2.4" x 1" (130 x 61 x 25 mm)
