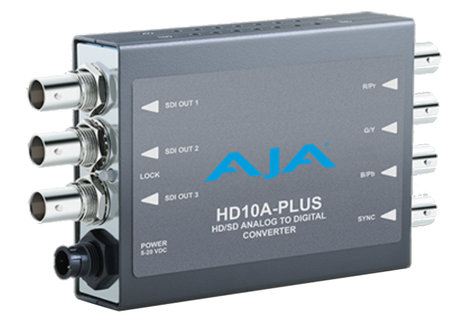

AJA Video Systems Inc HD10A-Plus
HD Analog to SD/HD-SDI Digital Mini Converter

OUR PART #:  HD10A-PLUS

The AJA HD10A-Plus is a high-quality 10-bit analog to digital mini converter for HD workflows.
Learn More
Our Price: $695.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10A-Plus
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HD10A-Plus is a high-quality 10-bit analog to digital mini converter for HD workflows. The HD10A-Plus can add an HD or SD SDI output to cameras, VTRs, or other analog-only equipment, even computers with HD RGB graphics. The HD10A-Plus accepts HD YPbPr or RGB analog and outputs three duplicate SDI signals. Works in 1080i, 1035i, 1080psf, and 720p with internal or external sync (tri-level). The HD10A-Plus also includes SD mode support for PAL and NTSC needs.

AJA Video Systems Inc HD10A-Plus Features:

  • Low Cost, High Quality, 10-bit HDTV A/D Conversion
  • Full Bandwidth Component HD RGB or YPbPr Input
  • 3 HD-SDI Outputs
  • Multi-Standard
  • SD mode support
  • Internal or External Sync
  • Easy-access DIP switch configuration
  • Low power, compact size
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5-year warranty

AJA Video Systems Inc HD10A-Plus Specifications:

  • Formats:
    • 525i/625i, 1080i 50/59.94/60 Hz
    • 1080psf 23.98/24/25 Hz
    • 720p 50/59.94/60 Hz
  • Inputs:
    • HD component YPbPr, RGB (SMPTE-274), BNC
    • SD component (Betacam, EBU-N10)/composite/YC (S-Video), BNC
    • External Sync, BNC
  • Outputs: HD/SD-SDI, SMPTE-259/292/296M 3 x BNC
  • Frequency Response:
    • Y +0, -.5 dB to 30 MHz
    • C +/- .25 dB to 15 MHz
  • User Controls:
    • External Dipswitch
    • Component/Composite (SD Only)
    • S-Video (off/on) (SD Only)
    • Pedestal Present (on/off) (SD Only)
    • Format (YPbPr/RGB)
    • NTSC-J (off/on) (SD Only)
    • SYNC (INT/EXT)
  • Power: +5-20 VDC, 4 watts
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
