Barco ClickShare Package
ClickShare Starting Package

OUR PART #:  CLICKSHARE-PACKAGE

ClickShare makes connecting to the meeting room’s video system a matter of clicking a button.
Learn More
Our Price: $3,950.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Barco ClickShare Package
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ClickShare makes connecting to the meeting room’s video system a matter of clicking a button. This one click wonder not only helps the presenter get the presentation on-screen in a second, but it also allows the other people in the meeting to participate more actively. The result is enhanced meeting efficiency and better decision-making.

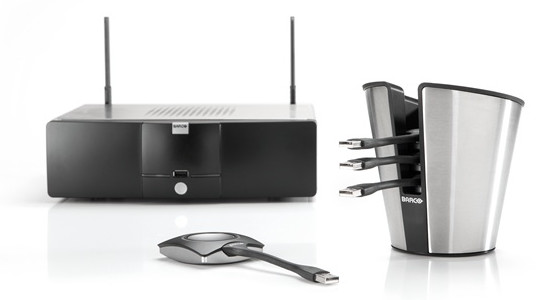

A standard ClickShare set-up consists of four USB-powered devices (the ‘ClickShare Buttons’), a storage basket to neatly store the Buttons when they’re not used (the ‘ClickShare Tray’) and a Base Unit. The Base Unit has a fixed connection to the meeting room’s visualization system, and takes care of all the needed processing. Users who want to get their presentation on the large meeting room screen, simply connect a Button to their PC or MAC. They start the application, click the ClickShare Button and immediately their desktop is wirelessly transferred to the large visualization system. What’s more, ClickShare does not interfere with your laptop’s resolution, and automatically displays the screen content in the most optimal way.

ClickShare simply works. This sounds obvious, but considering all the time lost today trying to connect the laptop to the meeting room display, it means a big relief for presenters. The result is enhanced confidence, leading to better presentations. ClickShare also allows other meeting attendees to participate more actively. When connecting one of the other ClickShare Buttons to their laptop, they can put their content on-screen as well. In total, four participants can be on-screen simultaneously.

A ClickShare set consists of a Tray, four Buttons, and a Base Unit. Additional items are sold separately.

Barco ClickShare Package Specifications:

  • Operating system:
    • Windows XP Pro, Vista Pro and Windows 7 Pro 32 & 64 bit, Windows 8 and 8 Pro
    • Mac OS X 10.6, 10.7, 10.8
  • Video outputs: DisplayPort, Single link DVI-I
    • VGA (via included converter, highest resolutions only with reduced blanking)
    • In "Dual screen" mode, connection can occur either through DVI and DisplayPort, or through VGA and DisplayPort.
  • Frame rate: Up to 30 fps (from software version V1.03.00.0001 onwards)
  • Output resolution: DVI WUXGA (1920x1600) (panoramic format (2560x1080) available from ClickShare Base Unit software v01.02.00.09 onwards)
  • Input Resolutions: Up to 2048x1536 (QXGA)
  • Noise Level Max.: 28dBA
  • Number of sources simultaneous on screen: 4
  • Number of simultaneous connections: 64
  • Audio: Audio compatible from ClickShare Base Unit software v01.02.00.09 onwards
  • iPad, iPhone and Android compatibility:
    • Available via ClickShare app for static content.
    • For iOS devices, the optional ClickShare Link and AppleTV can be used to show dynamic content, from ClickShare Base Unit software v01.02.00.09 onwards
  • Authentication protocol: WPA2-PSK
  • Encryption: AES CCMP
  • Wireless transmission protocol: IEEE 802.11 a/g/n
  • Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
  • Band: 2.4 GHZ and 5 GHz
  • Connections:
    • 1x Ethernet LAN
    • 4x (back) + 1x (front) USB
    • Analog line out on mini jack socket (3.5mm)
    • Analog line in on mini jack socket (3.5mm)
  • ClickShare Base Unit:
    • Dimensions (HxWxD):
      • 7.125” (incl. antennas) x 10.236” x 10.9” (Min.)
      • 181mm (incl. antennas) x 260mm x 276mm (Min.)
    • Weight 5.75 lbs. (2.6 kg)
  • Temperature range:
    • Operating: +5°C to +40°C (+41°F to +104°F)
    • Storage: -20°C to +60°C (–4°F to +140°F)
  • Humidity:
    • Storage: 0 to 90% relative humidity, non-condensing
    • Operation: 0 to 85% relative humidity, non-condensing
  • Altitude: Max 3000m (9842 ft)
  • Lifetime:
    • MTBF = 40,000h (90% confidence level)
    • MTBF = 100,000h (60% confidence level)
    • MTBF conditions:
      • Environment: Ground Benign
      • Temperature: 25°C
      • Method: MIL-HDBK-217F Notice 2

Computer System Requirements (computer sold separately):

  • PC minimum requirements:
    • CPU: Intel Pentium Dual Core E2140 – 2 * 1600 Mhz (or equivalent: AMD Athlon 64 X2 3800+ - 2 * 2000 Mhz)
    • Memory: 1024 MB RAM
    • OS: Windows XP Pro/Home (SP3) (Windows Vista/7 supported, but requires more RAM)
  • PC recommended requirements:
    • CPU: Intel Core 2 Duo E4600 – 2 * 2400 Mhz (or equivalent: AMD Athlon 64 X2 4800+ - 2 * 2500 Mhz)
    • Memory:2048 MB RAM
    • OS: Windows XP Pro/Home, Windows Vista, Windows 7, Windows 8
  • MAC
    • CPU: Intel Core 2 Duo
    • Memory: 2048 MB RAM
    • OS: Mac OS X 10.6, 10.7, 10.8
