Quam SYSTEM-5/8 12"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance

OUR PART #: SYSTEM-5/8

Copied to clipboard

The QUAM SYSTEM 5 / 8 is a complete loudspeaker assembly with an 8" O.D., full range loudspeaker, perforated steel baffle... ...Read more

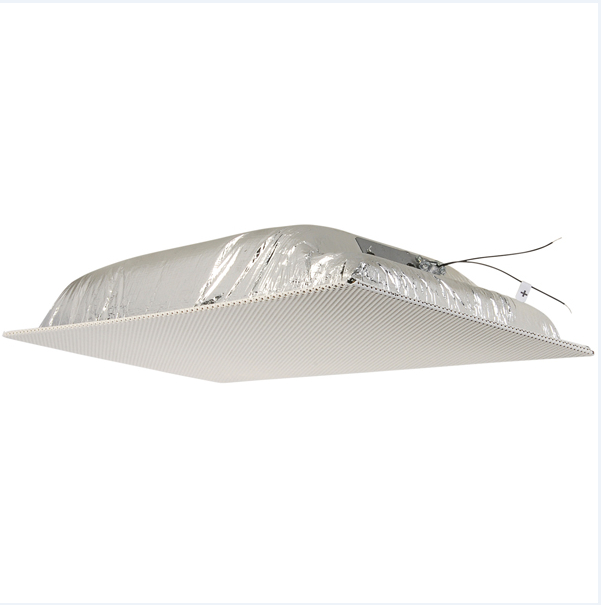

Quam SYSTEM-5/8 12"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance Image 1
Quam SYSTEM-5/8 12"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance
Our Price: $77.26
List Price: $90.40
You save 15%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The QUAM SYSTEM 5 / 8 is a complete loudspeaker assembly with an 8" O.D., full range loudspeaker, perforated steel baffle, and integral molded fiber enclosure; one 24" white "T" bar supplied to finish edge. Nominal impedance is 8Ω.

Finish Options: White or black baked epoxy hybrid.

The QUAM SYSTEM 5 / 8 is UL Listed 1480- (UEAY, UAEY7-Canada) and UL Listed 2043 when installed in accordance with supplied installation instructions, requirements of NEC and AHJ.

Quam SYSTEM-5/8 Applications:

Intended Use - Indoor Environment

Program Material – Signal tones, voice, and music

UL LISTED 1480 – As a General Signaling Device - When installed with supplied installation instructions and requirements of NEC / AHJ. (UEAY, UEAY7 - Canada)

UL LISTED 2043 – Suitable for use in air-handling spaces

City of Chicago Approved – Material and construction permits use where ceiling plenum is part of the air handling system.

Installation – Mounted parallel to door plane in a 24” wide suspended ceiling tile grid.

Specifications:

  • Average Sensitivity: 92dB-SPL 1W / 1M
  • Loudspeaker Power Rating: 12W-RMS EIA 426A Standard
  • Calculated Maximum System Output: 103dB-SPL 12W / 1M
  • Frequency Response: 65Hz - 17kHz EIA 426A Standard
  • Audio Connection: Pre-cut 7" color-coded leads
  • Maximum Output – 15W @ 8Ω
  • Magnet Type & Weight – BeFe Ceramic, 5oz. Nominal
  • Nominal Coverage Angle – 100° Included Angle -6dB / 2kHz, Half space
  • Unit Weight – 3.85lbs
