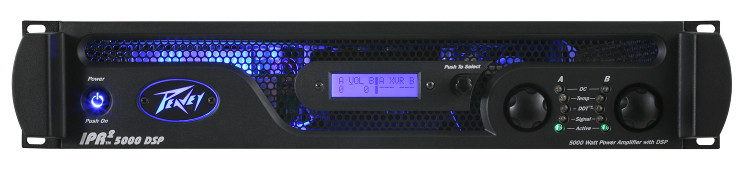

Peavey IPR2 5000 DSP
2,525W Stereo Power Amplifier with DSP

OUR PART #  PV-IPR-DSP5000-II

Our Price: $999.99
List Price: $1,599.99
You save 38%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Peavey's IPR-2 DSP 5000 boasts 2,525 watts RMS per channel at 2 ohms. This model features independent, assignable crossover points, delay, EQ presets, security lock settings and an intuitive setup wizard, combined with a variable-speed fan housed in a lightweight aluminum chassis, DDT speaker protection, and the revolutionary new IPR-2 class D topology.

Peavey IPR2 5000 DSP Features:

  • 2525W RMS x 2 at 2 ohms
  • 1510W RMS x 2 at 4 ohms
  • 890W RMS x 2 at 8 ohms
  • 2900W RMS x 1 at 2 ohms
  • 1780W RMS x 1 at 4 ohms
  • 975W RMS x 1 at 8 ohms
  • Detented input controls
  • Combination XLR 1/4" inputs
  • Combination 1/4" or 1/4" 4 pole twist lock output connector
  • Light weight
  • Individual signal pass-thru 1/4" jacks on each channel
  • LED illuminated
  • DSP-based Loudspeaker Management System
  • 120 ms of delay per channel
  • Security lock
  • Adjustable fourth-order Linkwitz-Riley Crossover
  • Adjustable fourth-order high-pass filter each channel
  • Setup wizard
  • MAXX Bass®
  • Horn EQ each channel
  • Blue, backlit LCD screen
  • Revolutionary IPR class D topology
  • DDT™ protection
  • 4 bands of parametric equalization per channel
  • Weight Unpacked: 13.67 lb (6.2 kg)
  • Weight Packed: 17.42 lb (7.9 kg)
  • Width Packed: 21" (53.34 cm)
  • Height Packed: 21.2" (53.848 cm)
  • Depth Packed: 6" (15.24 cm)

Peavey IPR2 5000 DSP Specifications:

  • Rated Watts: 2ch x 2 ohms 3230 watts 20ms repetitive burst / 2530 watts 1% THD both channels driven @ 1kHz.
  • Rated Watts: 2ch x 4 ohms 1985 watts 20ms repetitive burst / 1700 watts 1% THD / 1470 watts 0.15% THD, both channels driven @ 1kHz.
  • Rated Watts: 2ch x 8 ohms 1175 watts 20ms repetitive burst / 1025 watts 1% THD / 880 watts 0.15% THD, both channels driven @ 1kHz.
  • Minimum Load Impedance: 2 ohms
  • Maximum RMS Voltage Swing: 105 volts
  • Frequency Response: 20Hz - 22kHz; +/- 0.5dB at 1watt.
  • 20Hz - 20kHz 2ch x 2 ohms: <0.5% @ 2250 watts 20Hzto 4kHz, decreasing to 1640 watts @ 20kHz, both channels driven.
  • 20Hz - 20kHz 2ch x 4 ohms: <0.15% @ 1400 watts20Hz to 10kHz, decreasing to 1350 watts @ 20kHz, both channels driven.
  • 20Hz - 20kHz 2ch x 8 ohms: <0.15% @ 860 watts 20Hzto 4kHz, increasing to 1000 watts @ 20kHz, both channels driven.
  • Input CMRR >: - 75dB @ 1 kHz.
  • Voltage Gain: x 70 (+37dB)
  • Crossover: Adjustable High Pass and Low Pass filter per channel. Filter Types: 12dB/oct 2nd order, 18dB/oct 3rd
    order, 24dB/oct 4th order Butterworth and 24dB/oct 4th order Linkwitz –Riley.
  • Crosstalk: -60dB @ 1kHz @ 700 watts power @ 8 ohms.
  • Hum and Noise: > -96dB, “A” weighted referenced to rated power @ 4 ohms.
  • Slew Rate: > 12V/µs
  • Damping Factor (8 ohms): > 210:1 @ 20Hz - 1kHz @ 8ohms
  • Input Sensitivity: 1.094 volts +/- 3% for 1 kHz 4 ohm rated power, 1.025 volts +/- 3% for 1 kHz 2 ohm rated power.
  • Input Impedance: 12 kilohms, balanced and 6 kilohms unbalanced.
  • Current Draw @ 1/8" VA (watts): 1435 (890) @ 2ohms, 920 (525) @ 4 ohms, 625 (335) @ 8 ohms
  • Current Draw @ 1/3" VA (watts): 3050 (2155) @ 2ohms, 1880 (1200) @ 4 ohms, 1200 (715) @ 8 ohms
  • Idle Consumption: 195VA, 90 watts.
  • Cooling: 3 temperature dependent variable speed fans.
  • Controls: 2 front panel attenuators, crossover select switch for HPF, Normal and LPF
  • Indicator LEDs: Five LED indicators per channel:Active, Signal, DDT, Temperature and DC
  • Protection: Thermal, DC, subsonic, incorrect loads, under and over voltage
  • Connectors:
    • Inputs: Dual combination 1/4” XLR
    • Outputs: Dual male XLR input thru, one 2-pin & one 4 pin twist-lock connector
  • Construction: 0.062” thick aluminum
  • Dimensions: 3.5”x19”x 17” behind front panel + 0.6”for handle
  • Net Weight: 6.2 kg (13.6 lbs. not incl. power cord)
  • Gross Weight: 7.9 kg (17.4 lbs.)
