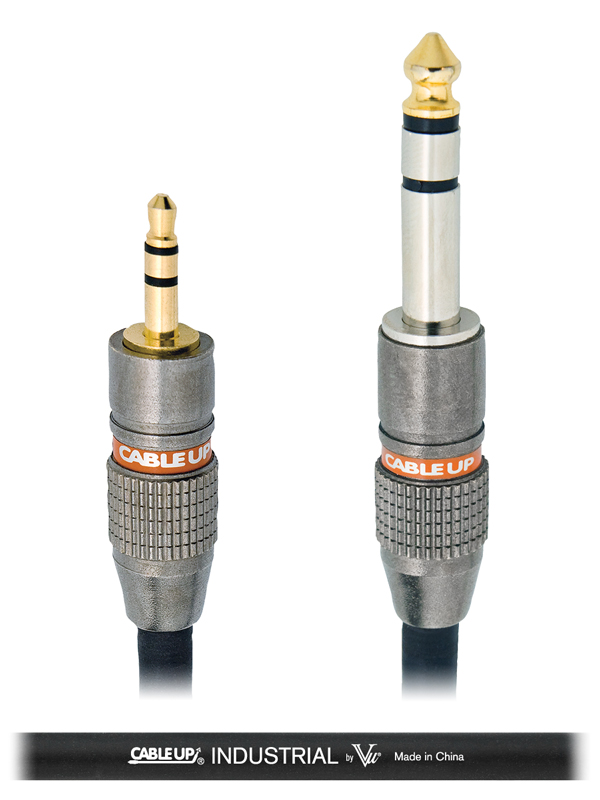

Cable Up M3-P3-3-BLK 3 ft 1/8" TRS Male to 1/4" TRS Male Cable

Cable Up Industrial audio cables feature a high-performance, yet rugged combination of low capacitance AES/EBU quality cable. The connectors are fitted with gold plated contacts for reliable professional use at a competitive price.

All Cable Up® Industrial cables are covered by a 1-year unconditional warranty against defects in material or workmanship.

Cable Up M3-P3-3 Specifications:

• Cable:
  • Number of Conductors: 2
  • Conductors: 24AWG
  • Stranding: 7 x 0.2 mm
  • Conductor Type: Bare Copper
  • Insulation Material: HDPE
  • Thickness: 0.6 mm
  • Core O.D.: 1.3 mm
  • Shield Type: 8x16x0.12mm + 7x0.2mm
  • Shield Style: Braid
  • Shield Material: Tinned Copper
  • Jacket Type: PVC
  • Jacket Thickness: 1.3 mm
  • Total O.D.: 5.5 mm
• Connectors:
  • 1/8" stereo TRS male plug
    • Cable Up Part #: 18TRSM-C
    • Plate gold tip and sleeve
  • 1/4" stereo TRS male plug
  • Cable Up Part #: 14TRSM-C
  • Plate gold tip
