Vaddio Extreme USB 2.0 Extenders
Extreme USB 2.0 Extenders for video and control over CAT-5 cable


Our Price: $470.00
List Price: $495.00
You save 5%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

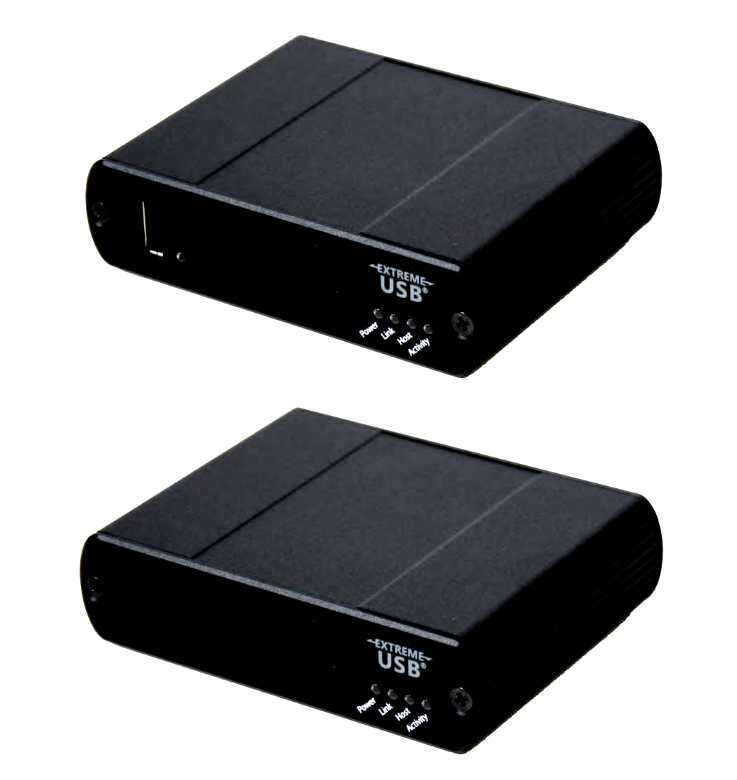

The Vaddio Extreme USB 2.0 Extenders provide a complete working solution powered by Extreme USB Long Reach USB 2.0 enabled by the Lion’sGate™ USB 2.0 Extension ASIC. The system has a transmit (TX) or remote device side and a receive (RX) or Host PC sidem and extends USB 2.0 high speed and USB 1.1 devices up to 100m (328.1’) over CAT-5 or better cable.

The TX side has the USB Type-A female USB 2.0 input jack and is located with the device and is powered with the 5 VDC power supply while the RX side is port powered by the Host PC. Power is not required on the RX Host side for normal operation.

The Extenders operate with USB 2.0 high-speed host controllers and USB 1.1 classic hosts. All USB device types are supported including Control, Interrupt, Bulk and Isochronous at up to 480Mbp/s. The Extenders are true plug and play and ready to operate out of the box and no new driver installation is required (bonus).The Extreme USB 2.0 Extenders support all major operation systems including Windows®, Mac OS® and Linux® and are ideal for a wide variety of USB devices like Vaddio HD-USB Cameras, EasyUSB Mixer/Amp and EasyTalk Wireless USB Mic System as well as printers, scanners, touch screens and game controllers.

Intended Use - The system was designed, built and tested for use indoors, and with the provided power supply and cabling. The use of a power supply other than the one provided or outdoor operation has not been tested and could damage the device and/or create a potentially unsafe operating condition.


  • One (1) Extreme USB Extender TX
  • One (1) Extreme USB Extender RX
  • One (1) 5 VDC Switching Power Supply
  • One (1) North American Power Cord
  • One (1) 6’ (1.83m) USB 2.0 Cable Type-A Male to Type-B Male
  • Documentation


  • Extreme USB 2.0 Extender TX (Remote or TX side)
  • Extreme USB 2.0 Extender RX (Local or RX side)
  • 5 VDC power supply and power cord

Vaddio EXTREME-USB-EXTENDRS Specifications:

  • Range: 100m (330ft) over CAT-5 (or better) cable
  • USB device support: High-speed devices (480 Mb/s)(USB 2.0) Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices(1.5 Mb/s) (USB 2.0 & 1.1)
  • USB host support: EHCI (USB 2.0) and OHCI/UHCI (USB1.1)
  • AC adapter(s):
    • Input: 100/240 V AC, 50 – 60 Hz, 600 mA maximum
    • Output: 5 VDC, 3 A
  • AC adapter connector: 1.7 mm center-positive jack
  • Current available to USB device at RX unit: 500 mA
  • RX unit USB connector: 1 x USB Type-B
  • TX unit Link connector: 1 x RJ45
  • TX unit Link connector: 1 x RJ45
  • TX unit USB connector: 1 x USB Type-A
  • RX unit dimensions: 3.94” x 2.99” x 1.02” (100 mm x76 mm x 26 mm)
  • TX unit dimensions: 3.94” x 2.99” x 1.02” (100 mm x76 mm x 26 mm)
  • TX power consumption: 500 mA maximum
  • RX power consumption: Approx. 500 mA (No Load). 1.5A(Full load)
  • System shipping weight: 2.0 lbs. (0.9 kg)
  • Operating temperature range: 0°C to 50°C
  • Storage temperature range: -20°C to 70°C
  • Operating humidity: 20% to 80% relative humidity,non-condensing
  • Storage humidity: 10% to 90% relative humidity,non-condensing
  • Regulatory testing: FCC (Class B), IC (Class B), CE(Class B)
  • ESD rating: EMC EN-61000-4-2 8kV Contact, 16kV Air
