Belden 5504FE-U500

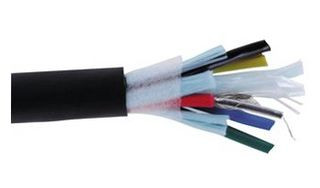

500' 6-22AWG Multi-Conductor Cable

OUR PART #:  5504FE-U500

Security & Alarm Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord.
Learn More
Our Price: $85.19
List Price: $101.82
You save 16%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 5504FE-U500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Security & Alarm Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord.

Specifications:

  • Conductor:
    • # of Conductors: 6
    • AWG: 22
    • Stranding: 7x30
    • Conductor Material: BC - Bare Copper
  • Insulation:
    • Material: PP - Polypropylene
    • Wall Thickness: .008"
  • Outer Shield:
    • Trade Name: Beldfoil®
    • Type: Tape
    • Material: Aluminum Foil - Polyester Tape w/ Shorting Fold
    • Coverage: 100%
  • Outer Shield Drain Wire:
    • AWG: 24
    • Stranding: Solid
    • Drain Wire Conductor Material: TC - Tinned Copper
  • Outer Jacket:
    • Material: PVC - Polyvinyl Chloride
    • Nom. Wall Thickness: 0.017"
  • Outer Jacket Ripcord: Yes
