Elation Opto Branch 8 1U DMX 8-Way Splitter / Booster with 8x Isolated Outputs

OUR PART #: OPTO-BRANCH/8 MFR #: OPB178

Copied to clipboard

The OPTO BRANCH 8™ from Elation Pro Lighting is an 8-way DMX distributor/booster device with 5-pin XLR input and output connectors, packed into a 19” 1U rack space. ...Read more

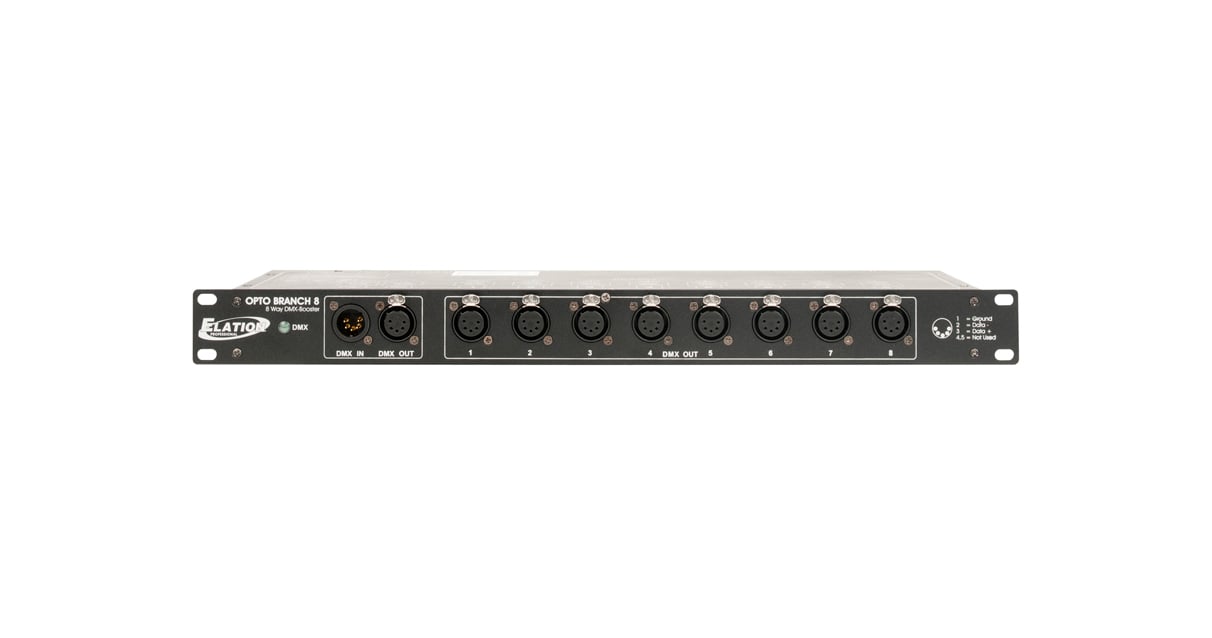

Elation Opto Branch 8 1U DMX 8-Way Splitter / Booster With 8x Isolated Outputs Image 1
Elation Opto Branch 8 1U DMX 8-Way Splitter / Booster With 8x Isolated Outputs Image 2
Elation Opto Branch 8 1U DMX 8-Way Splitter / Booster With 8x Isolated Outputs
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The OPTO BRANCH 8™ from Elation Pro Lighting is an 8-way DMX distributor/booster device with 5-pin XLR input and output connectors, packed into a 19” 1U rack space. It's engineered to split the incoming DMX signal up into eight (8) discrete outputs, with each output featuring a total electrical isolation of up to 1000V between the different branches within a daisy-chain group. This greatly reduces problems with ground loops, and efficiently buffers as well as amplifies the DMX signal, enhancing its integrity and reliability. All outputs are 5-pin XLR-type connectors, electronically isolated from each other to ensure uninterrupted data streams. In addition, each output includes dedicated drivers to boost the incoming signal.

Features

  • 8-Way DMX Data Splitter
  • Fully DMX-512 (1990) Compliant
  • Reliably Buffers and Distributes DMX Data
  • DMX Status Indicators

Specifications

  • (1) 5-pin Neutrik XLR Isolated Input
  • (1) 5-pin Neutrik XLR Passive Loop Output
  • (8) 5-pin Neutrik XLR Isolated Outputs
  • Power: Auto-Switching, 100-240 V 50/60 Hz
  • powerCON® power input
  • 1U 19” Rack Mount
  • Dimensions: 19" x 1.75" x 5.71" (482.5 x 44.5 x 145mm)
  • Weight: 4.4 lbs. (2 kg)
  • Note: additional information can be found within the items located under the "Documentation" tab above.
