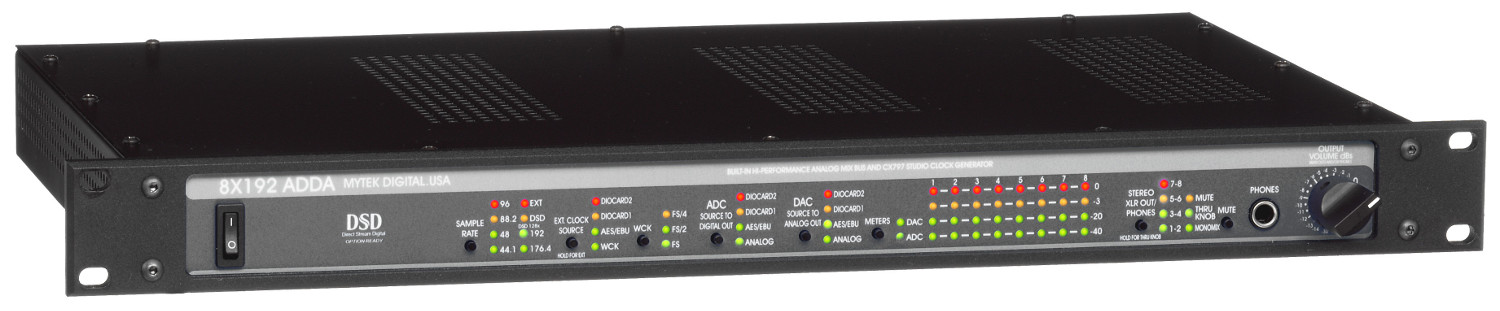

Mytek Digital 8X192ADDA
8-Channel 192kHz/DSD Hi-Performance A/D and D/A Converter


Our Price: $2,795.00
List Price: $3,295.00
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Mytek Digital 8X192 AD/DA is Mytek's hi-performance mastering converter which offers PCM A/D and D/A conversion for all sampling rates from 44.1kHz to 192kHz. Optional DSD firmware provides DSD (standard 64x) and hi-speed 128x DSD.

Mytek Digital 8X192ADDA Features:

  • Digital format conversion between AES and any of two optional DIO Cards installed
  • True precision mastering grade 1dB per step stepped attenuator
  • Analog mix buss assignable to 4 pairs of stereochannels or 8 mono channels
  • Additional to 8 analog outputs, 2 XLR outputs which can be assigned to any pair of channels or Mix Bus output
  • Hi-current (500mA), hi-speed, low distortion transparent headphone amplifier

Mytek Digital 8X192ADDA Specifications:

  • Conversion:  Linear 24 bit PCM, 128x oversampling at 44.1/48kHz, 64x oversampling at 88.2/96/176.4/192kHz
  • Conversion (optional):  64xDSD, 128xDSD
  • Dynamic Range ADC:  120dB (A weighted)
  • THD+Noise ADC:  -106dB (<0.0004%)
  • Dynamic Range DAC:  123dB (A weighted)
  • THD+Noise ADC:  -110dB (<0.0003%)
  • Internal clock jitter:  <10picoseconds
  • Analog Inputs:  +4dBm balanced or unbalanced, 10kOhm, D25
  • Analog Outputs:  +4dBm balanced or unbalanced, D25plus 2 XLR
  • Digital intputs:  8 Hi-speed (25-200kHz) AES/EBUor SPDIF D25
  • Digital outputs:  8 Hi-speed (25-200kHz) AES/EBUor SPDIF D25
  • The pinouts of D25 I/O connectors are compatible with Pro Tools HD (tm) Digisnakes (tm)
  • External Sync:  Word Clock in and out. Word Clock Out can be used as house clock: 15 LS TTL loads max.
  • Word Clock outputs:  6 separate  Word Clock Outs to be used as house clock: 15 LS TTL loads max. Can be terminated.
  • Headphone out:  Hi-current (500mA), hi-speed, stereo
  • Mix bus:  2x4 pairs or 8 mono, true analog mix bus
  • Stepped attenuator:  24 steps assignable to phones and XLR outs
  • Mains:  100/115V-220/240V 50/60Hz switchable
  • Dimensions:  1 rack space wide x 1U high x 9"deep, 17" x 1.6" x 9"
  • Weight:  14 pounds

Optional DIO Cards:
The 8X192 is equipped with two slots for optional 8 channel DIO Cards, Following cards will be available:

  • Firewire DIO-CARD
    • 8 channels, 192kHz/DSD interface. Mac OSX & Windows drivers.
  • Pro Tools HD (tm) DIO-CARD
    • 8 channels 192kHz direct interface to Protools HD (tm) Core systems.
    • 2 pairs of lightpipe, 8 channels of up to 96kHz or 4 channels of 192kHz.
    • 2 TDIF D25 connectors, 8 channels of up to 96kHz or 4 channels of 192kHz.
    • This card comes together with the DSD Firmware upgrade and provides 8 channels of SDIF 3 DSD digital interface.

NOTE:  Images shown above are for illustrative purposes only; optional DIO cards are not included with the purchase of this unit, contact your Sales Representative for more information.
