Mytek Digital STEREO96 DAC
Digital Audio Converter for Mastering

OUR PART #:  STEREO96-DAC

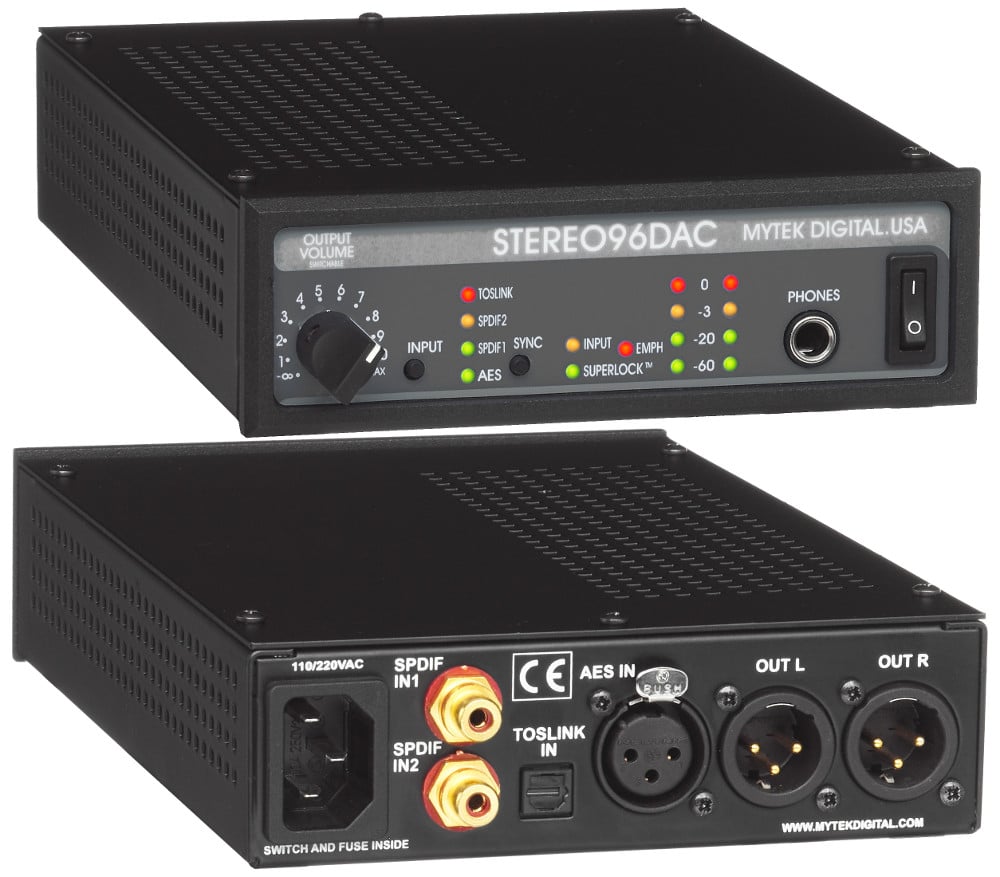

The Mytek Digital STEREO96 DAC is a two channel hi-end Digital to Analog  converter for recording and mastering applications.
Learn More
Our Price: $795.00
List Price: $995.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mytek Digital STEREO96 DAC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Mytek Digital STEREO96 DAC is a two channel hi-end Digital to Analog  converter for recording and mastering applications. The main feature of this converter is its outstanding sound quality which makes it suitable for the most demanding projects when preserving the original signal quality is a required.

The Mytek Digital STEREO96 series is a part of an extended family of 1/3 rack units. The STEREO96 DAC can be used as stand-alone device for variety of studio applications such as mastering, recording and playback, whenever the highest quality conversion is required.

The sound of Mytek converters can be described as "transparent". Mytek design's their converters to be as faithful to the signal as possible, rather than follow philosophy of some other manufacturers who offer "analog" or "tube" sounding converters. Mytek converters are closest to a straight wire, which is especially evident when used at full 24bit/96kHz resolution. Sonically they are equal or better than the most expensive mastering converters. Even when used in 16 bit mode, the Stereo96 converters produce 20dB (10 times) less distortion than typical converters found in budget recording equipment.

Mytek Digital STEREO96 DAC Features:

  • Jitter free operation with SuperLock (tm) technology. In SuperLock (tm) mode ultra stable 10ps internal clock allows for D/A conversion of incoming signals of any sample rate with 192kHz sampling bandwidth. This method provides 100% immunity to source jitter and relaxed filtering with 100kHz bandwidth.
  • Same converter chip and specs as 8X96 DAC
  • Transparent high current, high performance headphone amp
  • Volume control assignable to headphones and analog outputs (for plugging your digital monitoring directly into power amp for ultimate sound transparency)
  • External or internal sync
  • Accepts up to 192kHz single wire input on internal sync, and up to 96kHz on external sync
  • Stereo level meter with true over detection

Mytek Digital STEREO96 DAC Specifications:

  • 2-channel, 24bit, PCM 192kHz D/A conversion in SuperLock(tm) mode (96-kHz D/A conversion in input sync mode when digital input sync is used)
  • All sample rates playback with 100-kHz analog bandwidth in SuperLock(tm) mode
  • THD+N:  -107 dB (0.0005%)
  • 120 dB Dynamic Range A-weighted
  • AES/EBU and S/PDIF hi speed digital inputs (25-200kHz)
  • Digital input source-selection switch
  • Balanced, +4dB outputs (+29 dBu) with adjustable gain trimpots
  • Unbalanced operation with consumer levels
  • Variable or preset output level controls, switch selectable with high performance conductive plastic attenuator
  • Direct connection to powered monitors, the built in attenuator can be used as volume control
  • High performance conductive plastic attenuator
  • Built-in 0.5A high current drive, hi-speed headphone amplifier
  • Total jitter immunity via Superlockā„¢ technology
  • Phase Accurate D/A conversion across any number of channels
  • LED Bargraph true digital peak meter
  • Internal low-radiation oversized toroidal power supply
  • 110/220V AC operation
  • Power switch on the front panel
  • Automatic De-emphasis
  • Milled aluminum front panel
  • 1/3 wide, 1RU chassis
  • Rack mount 1U shelf available
  • CE Compliant
