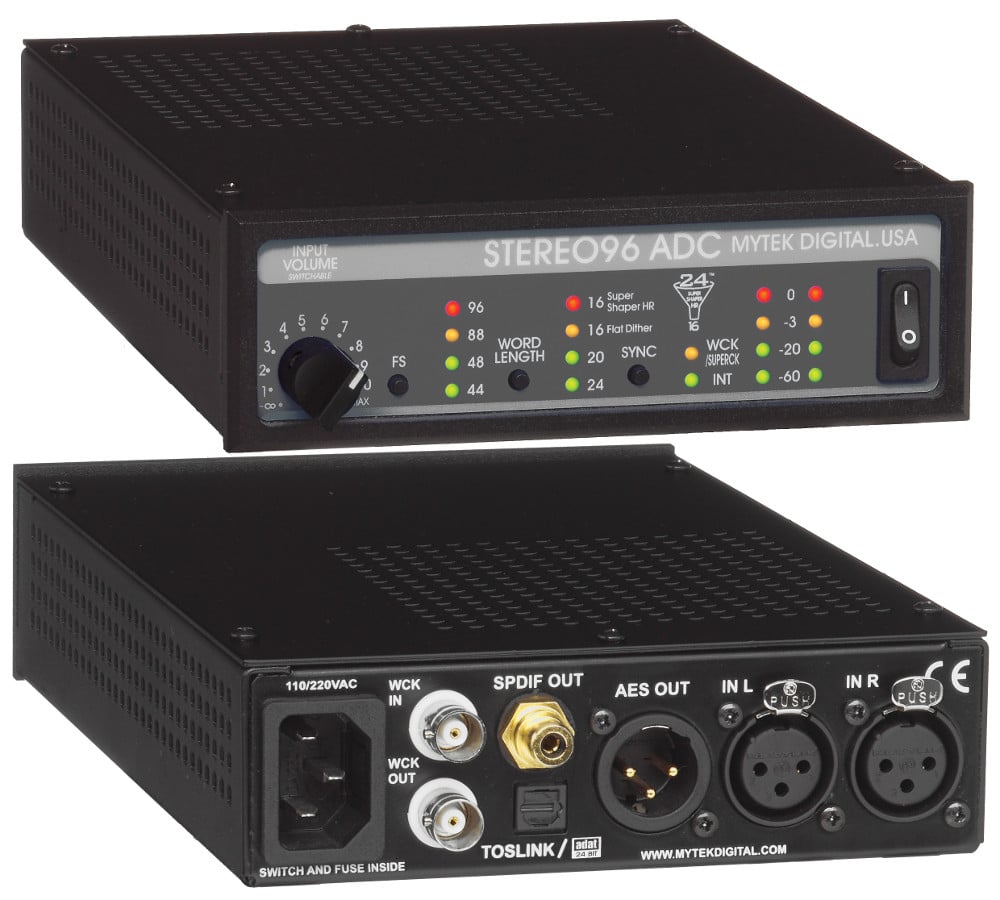

Mytek Digital STEREO96-ADC STEREO96 ADC

The Mytek Digital STEREO96 ADC is a two channel hi-end Analog to Digital converter for recording and mastering applications. The main feature of this converter is its outstanding sound quality which makes it suitable for the most demanding projects when preserving the original signal quality is a required.

The STEREO96 ADC converters can be used as stand-alone devices for variety of studio applications such as mastering, recording and playback, whenever the highest quality conversion is required.

The sound of Mytek converters can be described as "transparent". Mytek designs their converters to be as faithful to the signal as possible, rather than follow philosophy of some other manufacturers who offer "analog" or "tube" sounding converters. Mytek converters are closest to a straight wire, which is especially evident when used at full 24bit/96kHz resolution. Sonically they are equal or better than the most expensive mastering converters. Even when used in 16 bit mode, the Stereo96 converters produce 20dB (10 times) less distortion than typical converters found in budget recording equipment.

Mytek Digital STEREO96 ADC Features:

• 44.1, 48, 88.2 and 96kHz internal samplingfrequencies
• External word clock sync 25-100kHz or 256x Superclock(tm)
• 120dB Dynamic Range
• 24 bit resolution
• High performance SuperShaper-HR™ psychoacoustic noiseshaping algorithm for 16 bit output
• Switchable precision 10 turn-trimpots or input gainknob
• Word Clock output can be used as a hi-end house clock.

Mytek Digital STEREO96 ADC Specifications:

• Conversion: Linear PCM, 128x oversampling at44.1/48kHz, 64x over sampling at 88.2/96kHz
• Resolution: 24 bit
• Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz or WordClock 25-100kHz
• Dynamic Range: 120dB A-weighted, 117dB Total
• THD+Noise: -105dB (< 0.0005%)
• Internal clock jitter: < 10 picoseconds
• Analog Inputs: +4dBm balanced or unbalanced, 10kOhm
• Digital outputs: Hi-speed (25-100kHz) AES/EBU and SPDIF
• External Sync.: Wordclock in and out or 256xSuperclock, Wordlock Out used as house clock: 15 LS TTL loads max. Can be terminated
• Mains: 100/115V-220/240V 50/60Hz switchable
• Dimensions: 1/3 rack space wide x 1U high x 8" deep(5.5" x 1.6" x 8")
• Weight: 3.5 pounds
