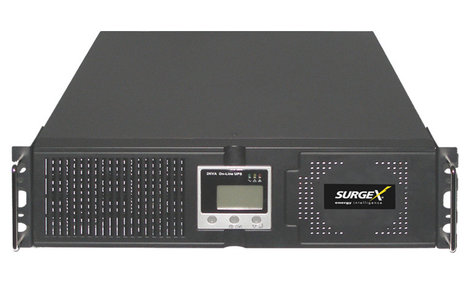

SurgeX UPS-3000-OL
3RU 30A 3000VA 5-Outlet Standalone Battery Backup

OUR PART #  UPS-3000-OL

Our Price: $2,469.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

For critical systems that require online battery backup, our UPS-1500-OL, UPS-2000-OL, and UPS-3000-OL solutions each deliver network grade power through double-conversion technology. They offer the perfect standalone backup solution for sensitive audio video systems, critical business servers, point of sale equipment, telephone, and data networks equipment that demand prolonged runtimes of 1.5 hours or greater. All three solutions provide extended scalable runtimes of up to 18 hours via self-charging extended battery packs and easily replaceable battery trays.

Specifications:

  • Voltage: 120 VAC (80 - 138 V at 100% load) 60-138 V at 40% load
  • Capacity VA (W): 1500 VA (1050 W) / 2000 VA (1400 W) / 3000 VA (2100 W)
  • Frequency: 50/60 Hz auto sensing
  • Power Factor: = 0.97
  • Topology: True on-line, Double conversion, Input PF correction
  • Voltage: 120 VAC
  • Frequency: 50/60 Hz auto sensing
  • Wave Form: Sine wave, zero transfer time
  • Load Power Factor: 0.7
  • Efficiency AC/DC/AC: = 90%
  • Auto Restart: Yes
  • Start on Battery: Yes
  • Rated Current: 12.5 A / 16.6 A / 25 A
  • Overload Capacity: 110-150% for 30 sec, = 150% for 200msec
  • Crest Factor: 3:1 at full load
  • Battery Type (UPS): (4) 12V 7.2AH/48V
  • Backup Time: 7-11 min (internal batteries) to 18 hours using External Battery Packs (EBP)
  • Extended Battery Packs: EBP2
  • Battery Type (EBP): 2 strings of (4) 12V 7.2AH/48V
  • Recharge Time: Typically < 4 hours
  • Unit Dimensions: 17.3" x 25.6" x 3.4" / 17.3" x 21.7" x 5.2" / 17.3" x 21.7" x 5.2"
  • Shipping Dimensions: 22.3" x 31.4" x 9.2" / 22.3" x 27.4" x 11.0" / 22.3" x 27.4" x 11.0"
  • Unit Weight: 57.3 lbs / 79.4 lbs / 81.6 lbs
  • Shipping Weight: 68.4 lbs / 91.5 lbs / 93.7 lbs
  • Line Cord: 5-15P / 5-20P / L5-30P
  • Receptacles: (6) NEMA 5 - 15R / (1) NEMA L5 - 20R + (4) NEMA 5 - 20R / (1) NEMA L5 - 30R + (4) NEMA 5 - 20R
  • Communication Interface: RS-232 or SNMP (optional card)
  • Operating Temperature: 0 - 40°C (32 - 104°F)
  • Audible Noise: < 50dba at one meter
  • Altitude: 6000 ft (1830 m) above sea level
  • Warranty: Three years electronics / One year batteries
  • North America: UL cUL FCC
  • LCD Visual Display: Input/output voltage & frequency, on-line mode, back up mode, battery capacity, load level
  • Audible Alarm: Beep every 4 sec (on battery)
  • UPS Fault: Continuous beeping sound and LCD display

What's Included:

  • UPSILON CD
  • Horizontal brackets
  • 5:1 brackets
  • Manual
  • 6' DB9 cable

SurgeX UPS-3000-OL
3RU 30A 3000VA 5-Outlet Standalone Battery Backup

OUR PART #  UPS-3000-OL

Product Information:

For critical systems that require online battery backup, our UPS-1500-OL, UPS-2000-OL, and UPS-3000-OL solutions each deliver network grade power through double-conversion technology. They offer the perfect standalone backup solution for sensitive audio video systems, critical business servers, point of sale equipment, telephone, and data networks equipment that demand prolonged runtimes of 1.5 hours or greater. All three solutions provide extended scalable runtimes of up to 18 hours via self-charging extended battery packs and easily replaceable battery trays.

Specifications:

  • Voltage: 120 VAC (80 - 138 V at 100% load) 60-138 V at 40% load
  • Capacity VA (W): 1500 VA (1050 W) / 2000 VA (1400 W) / 3000 VA (2100 W)
  • Frequency: 50/60 Hz auto sensing
  • Power Factor: = 0.97
  • Topology: True on-line, Double conversion, Input PF correction
  • Voltage: 120 VAC
  • Frequency: 50/60 Hz auto sensing
  • Wave Form: Sine wave, zero transfer time
  • Load Power Factor: 0.7
  • Efficiency AC/DC/AC: = 90%
  • Auto Restart: Yes
  • Start on Battery: Yes
  • Rated Current: 12.5 A / 16.6 A / 25 A
  • Overload Capacity: 110-150% for 30 sec, = 150% for 200msec
  • Crest Factor: 3:1 at full load
  • Battery Type (UPS): (4) 12V 7.2AH/48V
  • Backup Time: 7-11 min (internal batteries) to 18 hours using External Battery Packs (EBP)
  • Extended Battery Packs: EBP2
  • Battery Type (EBP): 2 strings of (4) 12V 7.2AH/48V
  • Recharge Time: Typically < 4 hours
  • Unit Dimensions: 17.3" x 25.6" x 3.4" / 17.3" x 21.7" x 5.2" / 17.3" x 21.7" x 5.2"
  • Shipping Dimensions: 22.3" x 31.4" x 9.2" / 22.3" x 27.4" x 11.0" / 22.3" x 27.4" x 11.0"
  • Unit Weight: 57.3 lbs / 79.4 lbs / 81.6 lbs
  • Shipping Weight: 68.4 lbs / 91.5 lbs / 93.7 lbs
  • Line Cord: 5-15P / 5-20P / L5-30P
  • Receptacles: (6) NEMA 5 - 15R / (1) NEMA L5 - 20R + (4) NEMA 5 - 20R / (1) NEMA L5 - 30R + (4) NEMA 5 - 20R
  • Communication Interface: RS-232 or SNMP (optional card)
  • Operating Temperature: 0 - 40°C (32 - 104°F)
  • Audible Noise: < 50dba at one meter
  • Altitude: 6000 ft (1830 m) above sea level
  • Warranty: Three years electronics / One year batteries
  • North America: UL cUL FCC
  • LCD Visual Display: Input/output voltage & frequency, on-line mode, back up mode, battery capacity, load level
  • Audible Alarm: Beep every 4 sec (on battery)
  • UPS Fault: Continuous beeping sound and LCD display

What's Included:

  • UPSILON CD
  • Horizontal brackets
  • 5:1 brackets
  • Manual
  • 6' DB9 cable
