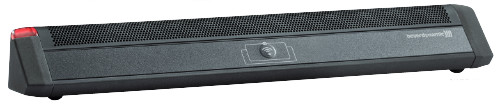

Beyerdynamic MPR 211 B
Revoluto Desktop Microphone


The MPR 211 is a desktop microphone with many different functions.
Learn More
Our Price: $549.00
Write the first review.
Beyerdynamic MPR 211 B
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The MPR 211 is a desktop microphone with many different functions.  Depending on the application, the operating mode ON/OFF, Push-To-Talk (PTT) or Push-To-Mute (PTM) can be selected at the bottom of the microphone unit.  The different functions are controlled by a micro-controller.

The Revoluto technology with integrated microphone capsules provides a so-called corridor characteristic which ensures a wide range of good voice quality.  Within this range the speaker can move freely, i.e. can stand up or sit down, move his/her head and move towards or away from the microphone.

The MPR 211 is turned on/off with a silent microphone button.  The illuminated LED on the microphone button and the LED on the left hand side indicate that the microphone is ready to speak into.  The MPR 211 is ideal as desktop microphone for discussions, tele/video conferencing and announcements.

The MPR 211 can also be operated with an external control contact.  As a choice the built-in microphone button is switched on or off.  An external device (e.g. mixing amplifier for announcements) can be triggered via the control output when operating the microphone button (e.g. mixing amplifier for announcements).  These basic functions are possible: Autonomous, Remote and External Logic.


  • "Intelligent" microprocessor-controlled microphone unit
  • ON/OFF, Push-To-Talk and Push-To-Mute functions
  • Revoluto Technology
  • Corridor characteristic
  • State-of-the-art metal casing
  • LEDs
  • Silent microphone button
  • Linear frequency response with high bandwidth
  • Operating modes: Autonomous, Remote, Ext. Logic
  • Bare-ended connecting cable


  • Transducer: Condenser (back electret)
  • Frequency response: 130 Hz – 17 kHz
  • Microphone: Microphone Array, patented
  • Polar pattern: Corridor
  • Optimal distance of the speaker: 60 - 80 cm
  • Open circuit voltage at 1 kHz: approx. 200 mV/Pa
  • Output level depending on the selected position:
    Hi: 200 mV/Pa
    Mid:60 mV/Pa (-10 dB)
    Lo: 20 mV/Pa (-20 dB)
  • Nominal impedance: 200 ohms
  • Load impedance:  > 1 kOhm
  • Max. SPL at f = 1 kHz, k < 1%: 112 dB
  • Signal-to-noise ratio rel. to 1 Pa: 60 dB
  • Voltage supply:
    Phantom powering
    48 V ±4 V to 6.8 kOhm supply impedance
    24 V ±4 V to 1.2 kOhm supply impedance
  • Power consumption: 3 mA
  • T.H.D.: < 0.1%
  • Connection: bare-ended 6-core cable, 3 m long
  • Temperature range: -10 °C to +40 °C
  • Dimensions: 11.81" L x 1.57" H x 1.77"D
  • Weight: 8.11 oz
