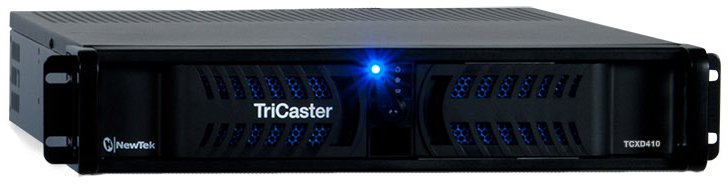

NewTek TriCaster 410
Live Video Production System

OUR PART #:  TRICASTER-410

The NewTek TriCaster 410 can streamline your production setup and keep your business moving from one event to the next.
Learn More
Image 6
TriCaster 410
TriCaster 460CS

Click a thumbnail to see more images. (6 total)

Our Price: $14,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

NewTek TriCaster 410
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The NewTek TriCaster 410 can streamline your production setup and keep your business moving from one event to the next. Forget the costly investment in racks and racks of equipment - you get all the gear you need in an all-in-one, compact system that’s easy to use and flight-case friendly.  Built for live event producers and webcasters on the move and on a tight budget, TriCaster 410 delivers the definitive live production experience with total confidence. Create a bigger looking show, custom branded with supercharged visuals like 3D holographic virtual sets, and a whole slew of productivity-enhancing tools. Overflowing with creative flexibility, but free of workflow and post-production extras outside the scope of what you do, TriCaster 410 cuts down equipment expenditure to fit your business the way you envisioned it—and adds professional good looks without the frills and extra costs.

NOTE:The monitors shown above are for illustrative purposes only and are sold separately.

Producing on-location doesn't mean leaving the comforts of the control room behind. The Tricaster 410 includes the 460CS control surface which lets you maintain a small production footprint without sacrificing manual control. With an intuitive layout, familiar live production controls, and compact frame, TriCaster 460CS is a perfect fit for mobile production or tight spaces.

You have a world of choices for handling live operations, with the TriCaster 460CS, plus support for breakout control of audio, camera, key commands, and even on-camera sequence triggering. TriCaster 410 System gives you complete control, whether you’re producing for broadcast, streaming live to the Web, projecting to a big screen, creating an engaging second-screen experience—or all of the above.

NewTek TriCaster 410 Features:

  • Turnkey Production
    Multiple turnkey functions do the work that usually requires racks of costly gear. Save space, setup time and expense with just one system; record, encode, switch, submix, playback, mix audio, and create advanced graphics, titling, and more
  • Streamlined SDI I/O
    Keep your productions professional and standardized to your predictable infrastructure and workflow with SDI connectivity; input up to four cameras with varying SD and HD resolutions; send your program out to multiple destinations and displays – even to another TriCaster over the network
  • Automation
    Streamline sophisticated operation sequences that are too complex for real-time action with custom memory presets and key commands; extend control behind the scenes and in front of the camera with MIDI support and interactive Hot Spots; and add robotic PTZ cameras that you can control remotely without the need for additional staff
  • Live Virtual Sets
    Take your multi-purpose room or a corner of a studio and turn it into any world you want to create, without the high cost or construction; our live virtual sets let you elevate your look with realistic foregrounds and moving backgrounds; or create a panoramic 3D location with our holographic LiveSet capability

NewTek TriCaster 460CS Features:

  • Intuitive layout-ideal for TriCaster 410-mapped directly to the user interface for maximum interaction
  • Full-featured workflow for optimal live production performance
  • Illuminated buttons for heightened visibility of control surface activity under any environmental lighting conditions
  • Premium T-Bar and three-axis joystick for precision control of effects, zooms and transitions
  • Seamless, simultaneous changeover of multiple production elements with versatile, multi-select delegate controls
  • Durable, ergonomic design for confident, comfortable performance

NewTek TriCaster 410 Specifications:

  • Switcher Channels: 15 – 6 external, 5 internal,4 M/E buses
  • Video Input: 4 simultaneous live video sources over SDI, in any combination of supported resolutions and frame rates (including PsF selections)
  • Network Sources: 2 live inputs via Gigabit connection, selectable from any networked computers via included NewTek iVGA client application; wireless Apple® AirPlay® devices; TriCaster; 3Play; USB video sources; video over IP sources; RTMP or RTSP streams; HTTP streaming video sources; and third-party partner solutions
  • Robotic Camera Support: Access up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols, with preset system and user interface control over camera orientation, zoom, focus and iris
  • Media: 4 integrated digital media players (2DDRs, GFX and Sound) + 15 network shareable buffers
  • Buffers: 15 still & title buffers to store and playback titles and graphics
  • Mix/Effect Buses: (M/E) 4 freely-configurable M/E channels for video mixing, compositing, effects and virtual sets, each with independent Key layer, and support for TransWarp effects
  • Macros: Record configurations and operation sequences to various control methods for recall and automation, with built-in macro editor
  • DSKs: 2 primary DSK channels, plus 1 additional Key layer per M/E bus, each with independent transition controls, 3D DVE, scaling, cropping and integrated TransWarp effects
  • Effects and Transitions: Integrated TransWarp effects engine on all effects channels supports standard transitions, customizable animation store transitions with audio, and overlay effects; Animation Store Creator for custom animations
  • Virtual Sets: 30+ HD live virtual sets supporting up to 2 switchable live sources, with presets, multiple camera angles, real-time reflections, and animated pan, zoom, and pedestal moves
  • Holographic Live Virtual Sets: Support for custom virtual environments generated from panoramic smartphone, camera or DSLR images (VSE 2.5 required)
  • Video Output: Configurable for up to 5 output connections, with support for key output and per-connection signal settings
    • 2 x SDI
    • HDMI output
    • Network output for live streaming
    • A/V output to network-connected TriCaster over local network
  • Recording: Native recording in up to1080, with encoding format selectable from: QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio), MPEG-2 (high or normal profile), AVI (SpeedHQ), and H.264 (high or Web quality)
  • Media Publishing: Supports direct content upload to YouTube™, Facebook, Twitter™, FTP, local, or external volumes, and network servers
  • Live Streaming: HD live streaming with simultaneous archive, presets in up to 720p, and support for most common streaming profiles and custom multi-bitrate streaming profiles, including RTMP streaming using H.264 (ex. Adobe® Flash® Media Server), Microsoft® Windows Media® Push/Pull, and browser-based streaming applications, with Ustream® and Livestream® native integrated support
  • Audio Inputs:
    • 4 SDI Embedded
    • 1 x 2 Balanced XLR (Mic/Line)
    • 1 x 2 Balanced 1/4” (Mic/Line)
  • Audio Outputs:
    • 2 SDI Embedded
    • 1 x 2 Balanced XLR
    • 1 x 2 Balanced 1/4” (AUX)
    • 1 Stereo 1/4” (phones)
  • Audio Mixing: Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones, with 4 fully independent stereo output mixes, companion iPad® audio mixing app, and support for Avid® Artist Mix audio control surface
  • Supported Session Formats:
    • NTSC model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
    • Multi-Standard model: NTSC 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i; NTSC-J 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i; PAL 1080/25p, 1080/24p, 1080/50i, 720/50p, 720/25p, 720/24p, 576/25i
  • Playback Media Formats: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)
  • Monitoring: DVI and HDMI monitor outputs for user interface and multiview displays, with selectable layouts and dual-monitor display combinations via Workspaces control panel
  • Signal Monitoring: Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709
  • MIDI Control: Support for standard MIDI protocol enabling third-party MIDI device control of TriCaster operations via macros
  • System Physical: 2U Rack Mount, with 430W power supply and multi-tiered hardware and software fail-safe
