TecNec ES-289E-P
Time-Code-Based NTP Time Server

OUR PART #:  ES-289E-P

The ES-289E provides a practical method of putting accurate time information onto a network. The unit reads ESE or SMPTE/EBU time codes.
Learn More
Our Price: $1,032.50
List Price: $1,050.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

TecNec ES-289E-P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

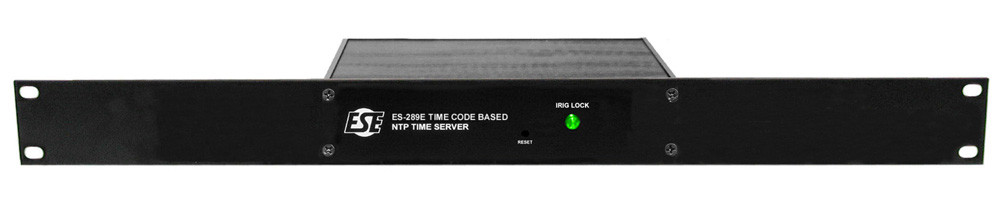

The ES-289E provides a practical method of putting accurate time information onto a network. The unit reads ESE or SMPTE/EBU time codes. The NTP output is provided on a 10/100 Base-T Ethernet connector. The ES-289E is housed in a rugged black anodized desktop enclosure. A voltage-controlled temperature-compensated crystal oscillator is used to maintain the accuracy of the time code outputs when lock is lost.

The ES-289E is an IPV4/IPV6 compatible NTP Time Server. NTP clients can authenticate the NTP server with MD5 or SHA1 Symmetric Key Authentication. SNMP V1, V2 and V3 support allows specified users to be notified if a cold boot occurs, if Time Code Lock is lost or gained, or if NTP Authentication failed. The web server of the ES-289E can operate in two modes: HTTP or HTTPS. The HTTPS mode has the advantage of all information going to and coming from the server being encrypted.

Features:

  • NTP Time Code Output: Ethernet 10/100 Base-T (RJ-45)
  • ESE or SMPTE/EBU Time Code Input (BNC)
  • Status LED's
  • Lock Status Output
  • Regenerated TC90 Time Code Output (BNC)
  • Embedded web page (Secure and Normal) or a telnet session
  • TTL lock output status
  • IPv6 Compatible
  • Supports Authentication

Specifications:

  • I/O Connection: Network: 10/100BaseT Ethernet, RJ-45
  • Outputs: ESE Time Code™ TC89 or TC90, Drives 100 Slaves @ 4000’, BNC
  • GPS Receiver: Internal 12-Channel (ES-104A only)
  • Time Code Input:: ASCII (RS-232C): NENA (format “1”), ESE(“A”), or NMEA 0183 (GPRMC), DB-9
  • Drift: 33ms/Day (if no GPS signal)
  • Configuration: Web page or Telnet
  • Enclosure: Desk-Top, Black Anodized Aluminum
  • Dimensions: 1.6” H x 7” W x 5” D
  • Electrical: 117 VAC, 50/60 Hz
  • Power: 5W maximum
