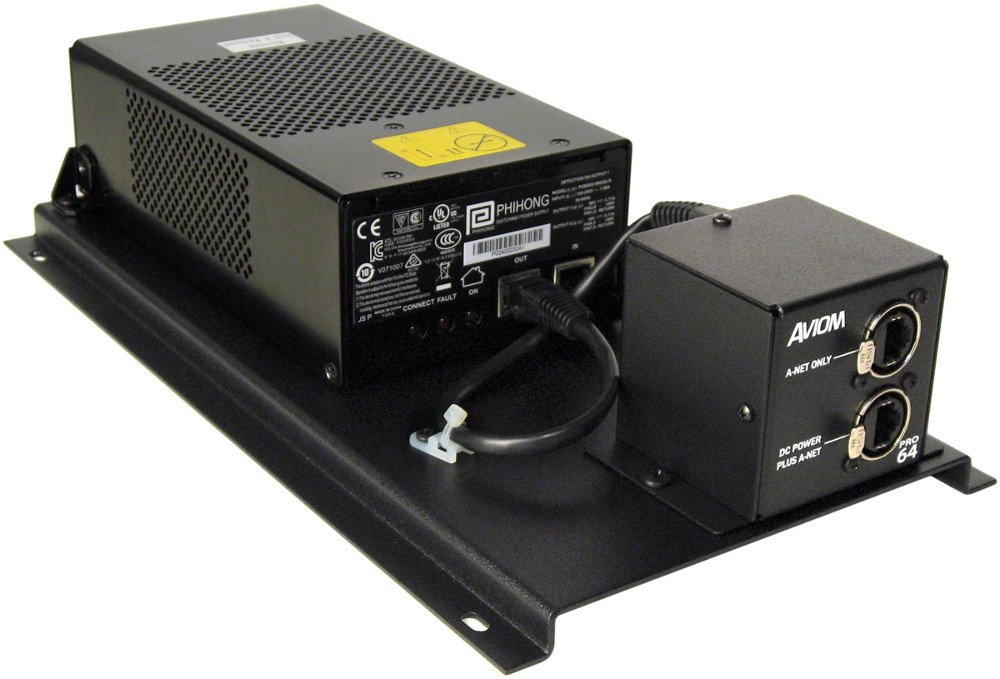

Aviom POA80 Power Supply For All Frame

The POA80 provides power over A-Net (PoA) for the F6 Modular I/O Frame, the host device that is the basic building block of the AllFrame Multi-Modular I/O System.

The POA80 is the only power supply device approved for supplying power over the Cat-5/Cat-6 cable for AllFrame.

The POA80 Power Over A-Net Power Supply accepts one Cat-5/Cat-6 A-Net network connection and outputs the A-Net signal plus power for the F6 Modular I/O Frame. This allows the power supply to be placed up to 400 feet (120m) from the AllFrame device for ultimate system flexibility.

The POA80 requires a standard IEC power connection and may be mounted on a standard rack tray, or attached to a wall or other flat surface.

The POA80 may be used to power an F6 even when the F6 fiber ports are used for data transmission.

The F6 Modular I/O Frame can also be powered simultaneously via its 4-pin XLR and/or Euroblock terminal block power inlets, allowing redundant power supplies to be connected.

Specifications:

• ED Indicators:
  • Connect - green - DC Power 'OK'
  • Fault - red - Fault detected
  • On - green - Power on/off
• Mounting: Four mounting holes on the tray allow the unit to be attached to a rack shelf or other flat surface.
• A-Net Connections
  • One Pro64 network A-Net In
  • One Pro64 network A-Net plus DC power Out
  • Connects to A-Net Port B only on F6
  • EtherCon RJ45 connectors
• AC Input Voltage Range: 100 to 240VAC, 47-63Hz
• AC Power Inlet: Removable IEC electrical connector
• Total Output Power: 80W
• DC Output Voltage: +56V
• Operating Temperature: -40 to +55°C
• Dimensions (POA80): 13.25" x 7.0" x 3.04"
• Weight: 9 pounds (4.08 kg)
