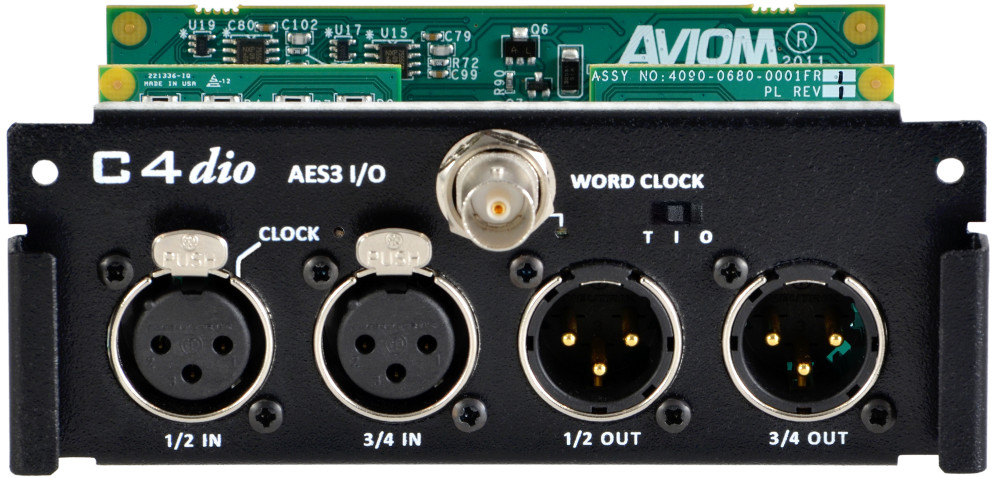

The C4dio AES3 Digital I/O Card is a 4-in, 4-out AES3 digital card for the AllFrame Multi-Modular I/O System.

Install up to six C4dio cards in the F6 (the AllFrame host device) in any combination with the other available AllFrame cards to build a custom Pro64 I/O device for a digital snake or audio network.

With a C4dio card installed in an AllFrame, the Pro64 network can be locked to external clock sources connected to the card's AES3 XLR jacks or the dedicated BNC Word Clock jack.

The C4dio allows the six-slot F6 Modular I/O Frame to be configured as a 24x24 I/O device when six C4dio cards are installed. Each XLR connector on the C4dio carries a pair of digital channels, as per the AES3 specification, providing high channel count I/O in a minimal amount of space.

Optional sample rate converters can be turned on per input pair from within the Pro64 Network Manager software to allow devices with digital outputs, but without Word Clock connections, such as CD and DVD players to be used as input sources.

The C4dio can be clocked by the distributed Pro64 network clock, an AES3 digital signal connected to XLR input 1/2, or an external Word Clock signal connected to the BNC connector. The system clock can be output locally to other devices via the BNC Word Clock connector, and is also embedded in the AES3 outputs.

Features:

  • Four channels of AES3 digital inputs
  • Four channels of AES3 digital outputs
  • BNC Word Clock connection with Out, In, and In with Termination options
  • AES3 clock sync via XLR inputs 1/2

Specifications:

  • Channels: 4 AES3 inputs; 4 AES3 outputs
  • AES3 Inputs: Two XLR female, Channels 1/2 and 3/4; One bi-color clock LED for Channels 1/2
  • AES3 Outputs: Two XLR male, Channels 1/2 and 3/4
  • Word Clock I/O: One BNC connector; One bi-color LED; 3-position slide switch allows the BNC jack to be set for Word Clock Out (O), Word Clock In (I), or Word Clock In with Termination (T)
  • Word Clock Input: Sensitivity: 0.2 to 5Vp-p
  • Impedance: 75 ohms/70k ohms selectable
  • Clock Sources: Internal (Network), Work Clock, AES3; AES3 Clock connects to Inputs 1/2 only
  • Jitter Attenuation: Well below AES3 Jitter Transfer Function Mask
  • Network Sample Rates:
    • 1x: 39.7-52kHz
    • 2x: 79.4-104kHz
  • Sample Rate Conversion: Can convert input sample rates between 28.0kHz and 216.0kHz to any supported system sample rate;
  • THD+N: less than 130dB for full scale signals
  • Sample Rate Conversion Time: Less than 0.42 ms (at all system sample rates)
  • Dimensions: 5.2" x 1.9" x 3.01"
  • Weight: 0.5 pound (0.22 kg)
