The C4m Mic/Line Input Card provides four remote-controllable mic/line-level inputs for modular AllFrame systems. ...Read more

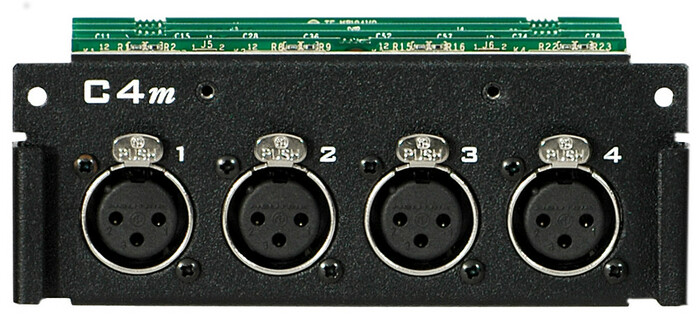

Aviom C4M Mic/Line Input Card For The AllFrame Image 1
Aviom C4M Mic/Line Input Card For The AllFrame
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The C4m Mic/Line Input Card provides four remote-controllable mic/line-level inputs for modular AllFrame systems. Each preamp offers the pristine archival-quality audio that Aviom systems are known for. Essential channels strip controls—gain, phantom power, low-cut filter, and phase are individually controllable.

Up to six C4m cards can be installed in a single F6, the host frame for the modular AllFrame system, putting up to 24 remote controlled mic preamps in a single location. Mix and match I/O cards to create custom Pro64 devices configured for your specific needs.

The C4m card's four remote-controllable analog mic- or line-level inputs feature the same mic preamp circuitry found in the state-of-the-art 6416m Mic Input Module and provide clean, transparent A-to-D conversion without compromise. Once digitized, the signals can be routed anywhere in the Pro64 network and output in a variety of formats including analog line-level, mic level, AES3 digital and/or directly into a Yamaha console with a 6416Y2 A-Net Card installed.

The preamp channel strip settings on the C4m inputs can be remote controlled from an MCS Mic Control Surface, select Yamaha® digital consoles by using the Pro64 network's m-control feature, or from the Pro64 Network Manager software.

The modular nature of the I/O cards in an AllFrame system allow the user to reconfigure the network's I/O devices to suit the needs of the application in just minutes. Imagine trying to do that with traditional analog cabling.

Features:

  • Clean, transparent, archival-quality audio
  • Four XLR female inputs per card
  • Remote controllable from RCI/MCS, Yamaha consoles, or Pro64 Network Manager

Specifications:

  • Inputs: 4 channels; XLR; Mic or line-level
  • XLR Inputs: Pin 1: Shield; Pin 2: Hot; Pin 3: Cold
  • Differential Input Impedance: 3.6k ohms
  • Input Gain Range: 0-55dB, variable, in 1dB increments
  • Maximum Input Level Resulting in 0dBFS:
    • 0dB gain, Pad on = +24dBu
    • 0dB gain, Pad off = 0dBu
    • 55dB gain, Pad on = -31dBu
    • 55dB gain, Pad off = -55dBu
  • Pad: -24dB, switchable per channel
  • Low Cut Filter: -3dB @85Hz, -18dB per octave; per channel
  • Phantom Power: +48V, individually selectable per channel
  • Frequency Response
    • +/- 0.3dB 20-23kHz at 48kHz
    • +/- 0.3dB 20-45kHz at 96kHz
    • +/- 0.3dB 20-53kHz at 192kHz
    • -3dB @ 2Hz (at all sample rates)
  • THD+N
    • 0.0015% @1.0kHz, -10dBFS
    • 0.007% @ 1.0kHz, - 1dBFS
  • Dynamic Range (noise floor): 112dB
  • Crosstalk: -110dB @1kHz. 35dB gain
  • Equivalent Input Noise (EIN): -127dBu
  • CMRR (common mode rejection ratio): 78dB @ 1.0kHz / 75dB @ 10kHz typical
  • Threaded Inserts: PEM FEOX-440; Use size #4 machine screw with 40 threads per inch.
  • Dimensions: 5.2" x 1.9" x 3.01"
  • Weight: 0.5 pound (0.22 kg)
