Product Overview

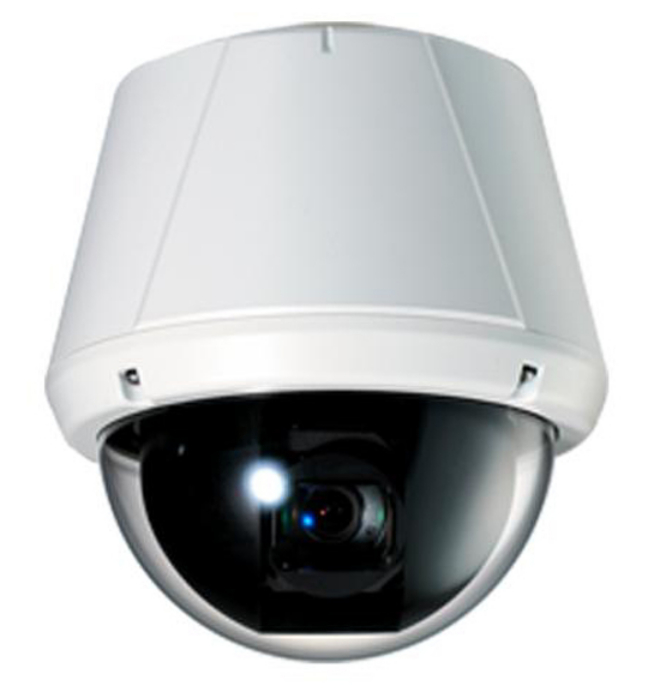

Speco Technologies offers the HTSD37X, an Indoor/Outdoor, Day & Night Motorized Speed Dome Camera with 37x Optical Zoom Lens. This unit is highlighted by endless rotation (360°), Day/Night operation, resolution of 600 TV lines (color) or 700 TV lines (black and white) with the wall mount kit is included.
Features:
- 3.5 - 129.5mm, 37x optical zoom with 16x digital zoom lens
- 1/4” interline transfer CCD
- 600 TV lines resolution
- 37x Optical zoom with 16x digital zoom
- 360° Endless rotation
- Various surveillance functions
- True Day & Night Operation: ICR filter
- Intelligent pan/tilt controlling: continually decreases pan and tilt speeds in proportion to zoom
- Weather resistant operation
- 1 year warranty
Specifications:
- Camera
- Image Sensor: 1/4” interline transfer CCD
- Resolution: 600 TV lines (color), 700 TV lines (BW)
- Minimum Illumination: 0.2 lux (color) / 0.07 lux (BW), 50 IRE / F1.6
- Total Pixels: 811 (H) x 508 (V) - 410K
- Effective Pixels: 768 (H) x 494 (V) - 380K
- Zoom: 37x optical zoom / 12x digital zoom
- Focal Length: F = 1.6 - 3.9, F = 3.5 - 129.5mm
- Angle of View:
- Zoom Speed: 2.8 sec. (wide to tele)
- White Balance: Auto / Manual (red, blue gain adjustable 1700°K - 11000°K)
- Video Signal Format: NTSC
- Video Signal-to-Noise: 52dB (AGC off)
- Day & Night: Auto / Day / Night (ICR)
- Focus: Auto / Manual / Semi-Auto
- Iris: Auto / Manual
- Shutter Speed: 512x - 1/120,000 sec.
- AGC: High / Middle / Low / Manual / Off
- Backlight Compensation: WDR / BLC / HLC / Off
- Flickerless: Selectable
- SSNR: High / Middle / Low / Off
- Privacy Zone: 8 masks, spherical coordinate
- Stabilization: On / Off
- Material
- Dome & Mounts: Polycarbonate
- Internal: Polycarbonate, ABS
- External: Aluminum
- Mechanical
- Movement Range: Pan 360° (endless), tilt 90°
- Speed:
- Preset: 209 presets (label, independent camera parameter setting)
- Pattern: 8 patterns [880 commands (approx. 4 minute) / pattern]
- Swing: 10 Swings
- Group: 8 groups (max. 40 actions with the combination of preset, pattern, and swing)
- Scheduler: 8 (program schedule for preset, swing, etc.)
- RTC: Real-time clock, battery backup time (2 weeks)
- Other Pan/Tilt Functions: Auto flip, auto parking, power up action, etc.
- Communication: RS-485
- Protocol: Pelco-D, Pelco-P, selectable
- OSD: 4 languages*, menu / time / PTZ information, etc.
- Sensor Input: 3 inputs, photo - coupler type, 5VDC - 12V
- Alarm Outputs:
- Power Supply: 12VDC / 24VAC dual voltage operation (power supply not included)
- Power Consumption: 12VDC, 1.8A / 24VAC, 1.8A
- Fan: Always on
- Heater: Operational start from internal temperature of 50°F
- Operating Temperature: - 22° F – 122° F
- Dome Size: 7.9” (Dia.) x 8.67” (H)
- Dimensions (dome included):
- Ceiling Mount: 6.2” (Dia.) x 7.9” (H)
- Wall Mount: 4.7” (W) x 5.5” (H) x 11.8” (L)
- Weight:
- Ceiling Mount: Approx. 8 lbs.
- Wall Mount: Approx. 7.5 lbs.
- Note: * 4 languages (English, Polish, French, Italian)
