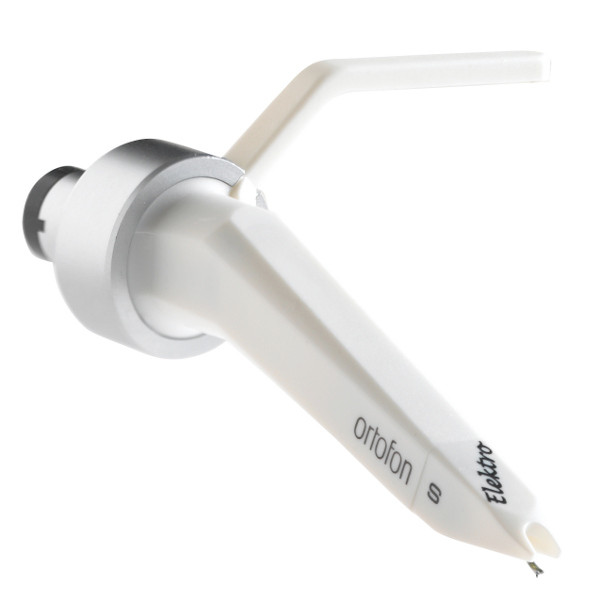

Ortofon Inc CC-ELEKTRO-SINGLE
Concorde Elektro DJ Cartridge

OUR PART #:  CC-ELEKTRO-SINGLE

Every professional ought to try the Elektro, a techno cartridge made by a team of highly qualified technicians and experienced and capable DJs.
Learn More
Our Price: $111.99
List Price: $157.99
You save 29%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc CC-ELEKTRO-SINGLE
Qty:
In Stock

Similar Products

Every professional ought to try the Elektro, a techno cartridge made by a team of highly qualified technicians and experienced and capable DJs.

Despite its sleek white styling, the Elektro isn't just another pretty face.  Also featuring a reinforced rubber suspension, the Elektro is the perfect hybrid needle for the artist who both mixes and scratches.

Enhanced tracking ability and excellent sound quality combine to form a unique balance of form and functionality.  With bold, round sound, the Elektro brings your music to life, whether you're in the club or the studio

Unaffected by extreme sound pressure and repeated vibrations, it has a high output. The musical performance is always first-rate and the tracking ability of the spherical diamond stylus is quite good.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 7.5 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-22.000 Hz
  • Frequency response: 20 – 18.000 Hz +3/-2 dB
  • Tracking ability at 315 Hz at recommmende tracking force: 80 µm
  • Compliance, dynamic lateral: 6 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 3.0-5.0 g (30-50 mN)
  • Tracking force recommended: 4.0 g (40 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: Elektro
