Ortofon Inc CC-SCRATCH-SINGLE
Concrode Scratch DJ Cartridge

OUR PART #:  CC-SCRATCH-SINGLE

As implied by the name, the Scratch is intended especially for the disciplines of scratch and back-cueing.
Learn More
Our Price: $118.99
List Price: $164.99
You save 28%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc CC-SCRATCH-SINGLE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

As implied by the name, the Scratch is intended especially for the disciplines of scratch and back-cueing. Like the QBert, DJs had a say in designing this cartridge so it would match the needs of dance floor kings.

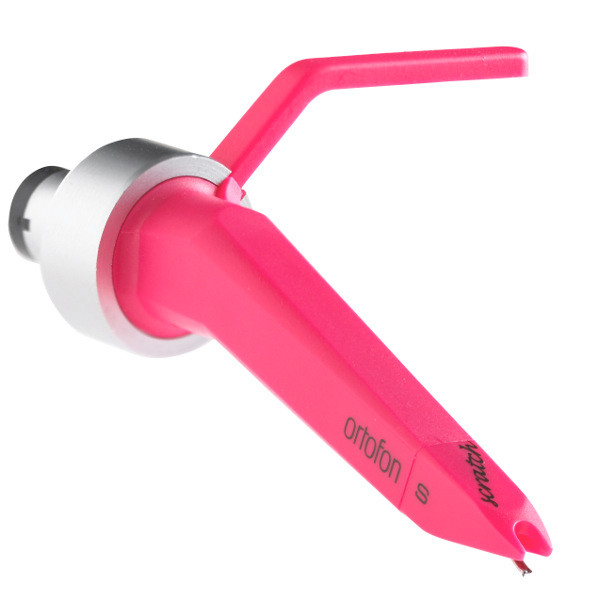

It is made of a fluorescent neon-red material with the intention it becoming highly apparent in spotlight and luminous in ultraviolet light. For DJs that require increased tracking ability, the Scratch is up to the task.

Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 7 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-20.000 Hz
  • Frequency response: 20-15.000 Hz 3dB/-2dB
  • Tracking ability at 315 Hz at recommmende tracking force: 80 µm
  • Compliance, dynamic lateral: 6 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 3,0-5,0 g (30-50 mN)
  • Tracking force recommended: 4,0 g (40 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: Scratch
