Ortofon Inc CC-DJS-SINGLE

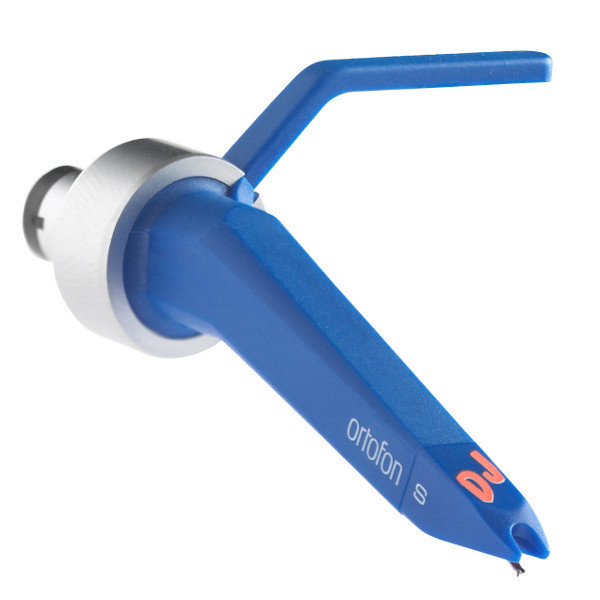

Concorde DJ S DJ Cartridge

OUR PART #:  CC-DJS-SINGLE

DJ S is a solid-built cartridge in a new blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever.
Learn More
Our Price: $121.99
List Price: $171.99
You save 29%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc CC-DJS-SINGLE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DJ S is a solid-built cartridge in a new blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever.

Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for busy DJ.

The DJ series has been known to many as the "jack of all trades," with improved tracking, alongside of accurate sound reproduction.

Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 6 mV
  • Channel balance at 1kHz: 2 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-20.000 Hz
  • Frequency response: 20-18.000 Hz 3dB/-2dB
  • Tracking ability at 315 Hz at recommmende tracking force: 80 µm
  • Compliance, dynamic lateral: 9 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 2,0-4,0 g (20-40 mN)
  • Tracking force recommended: 3,0 g (30 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: DJ S / DJ E
