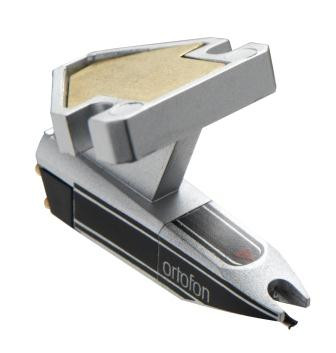

Ortofon Inc OM-S120
OM Headshell Mount DJ Cartridge

OUR PART #:  OM-S120-PREMOUNT

The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges.
Learn More
Our Price: $104.99
List Price: $146.99
You save 29%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc OM-S120
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges. Its breakthrough patent pending technology has been designed to provide maximum freedom for DJ performance.

An innovative technology, called asymmetric suspension, takes the cartridge performance to the next level. Its superior tracking force ensures the S-120 stays in the groove even under extreme live performance conditions.

In addition, its design achieves an unprecedentedly low level of record wear, which helps protect your valuable vinyl. On top of this, the S-120 is capable of providing a level of sound quality never thought possible from a modern DJ cartridge.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 10 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-18.000 Hz
  • Frequency response: 20-18.000 Hz +3/- 2dB
  • Tracking ability at 315 Hz at recommended tracking force: 120 µm
  • Compliance, dynamic lateral: 11 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 1,5-10,0 g (15-100 mN)
  • Tracking force recommended: 4,0 g (40 mN)
  • Internal impedance, DC resistance: 1680 Ohm
  • Internal inductance: 920 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 5 g
  • Replacement stylus unit: Ortofon-Serato S-120
