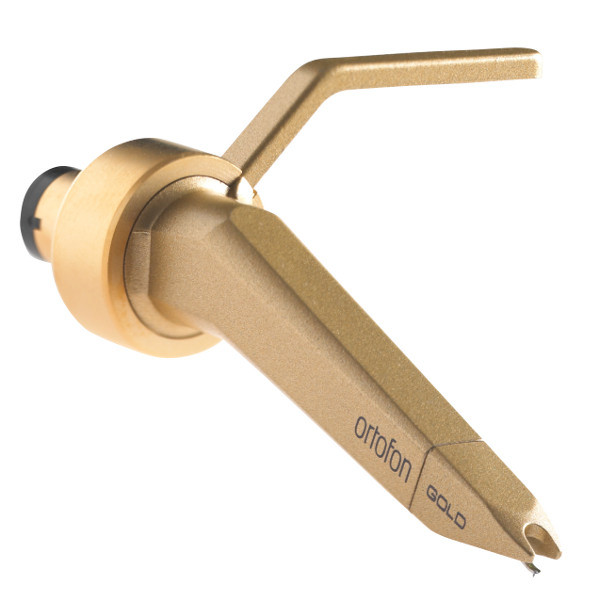

Ortofon Inc CC-GOLD-SINGLE
Concorde Gold DJ Cartridge

OUR PART #  CC-GOLD-SINGLE

Our Price: $183.99
List Price: $256.99
You save 28%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Perfect for usage in discotheques and clubs: provides the best possible sound quality available in a DJ cartridge!

Designed to commemorate the release of the limited edition Technics SL-1200LTD and SL-1200GLD, the Concorde Gold was made to compliment the attractive stylings of these limited edition turntables and to provide the best possible sound quality available in a DJ cartridge.

Using the cartridge for the first time feels like striking gold. It is indeed the flagship product with its gold plating and special Pro E diamond. The Gold enjoys an excellent reputation for its amazing sound quality.?

Compatible to a very wide range of turntables and perfect for all entertainment purposes.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 6 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-22.000 Hz
  • Frequency response: 20-20.000 Hz +/- 2dB
  • Tracking ability at 315 Hz at recommmende tracking force: 80 µm
  • Compliance, dynamic lateral: 7 µm/m N
  • Stylus tip radius: r/R 13/25 µm
  • Tracking force range: 2,0-5,0 g (20-50 mN)
  • Tracking force recommended: 3,0 g (30 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: Gold

Ortofon Inc CC-GOLD-SINGLE
Concorde Gold DJ Cartridge

OUR PART #  CC-GOLD-SINGLE

Product Information:

Perfect for usage in discotheques and clubs: provides the best possible sound quality available in a DJ cartridge!

Designed to commemorate the release of the limited edition Technics SL-1200LTD and SL-1200GLD, the Concorde Gold was made to compliment the attractive stylings of these limited edition turntables and to provide the best possible sound quality available in a DJ cartridge.

Using the cartridge for the first time feels like striking gold. It is indeed the flagship product with its gold plating and special Pro E diamond. The Gold enjoys an excellent reputation for its amazing sound quality.?

Compatible to a very wide range of turntables and perfect for all entertainment purposes.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 6 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-22.000 Hz
  • Frequency response: 20-20.000 Hz +/- 2dB
  • Tracking ability at 315 Hz at recommmende tracking force: 80 µm
  • Compliance, dynamic lateral: 7 µm/m N
  • Stylus tip radius: r/R 13/25 µm
  • Tracking force range: 2,0-5,0 g (20-50 mN)
  • Tracking force recommended: 3,0 g (30 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: Gold
