Blizzard HotBox 5 RGBAW 7x15W RGBAW LED Par Fixture

OUR PART #: HOTBOX-5-RGBAW MFR #: 123526

Copied to clipboard

Blizzard's HotBox™ 5 RGBAW PAR luminaire is built to impress, delivering remarkable color mixing, advanced electronics, and a huge amount of light output all in a tiny package. ...Read more

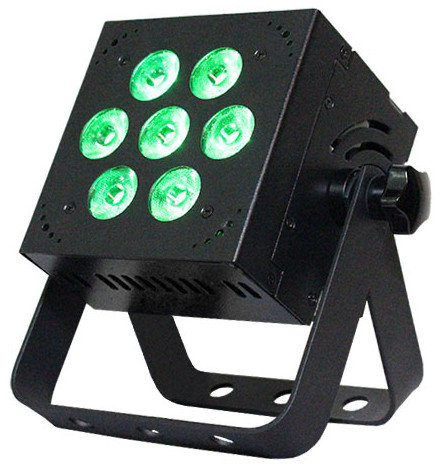

Blizzard HotBox 5 RGBAW 7x15W RGBAW LED Par Fixture Image 1
Blizzard HotBox 5 RGBAW 7x15W RGBAW LED Par Fixture Image 2
Blizzard HotBox 5 RGBAW 7x15W RGBAW LED Par Fixture Image 3
Blizzard HotBox 5 RGBAW 7x15W RGBAW LED Par Fixture
Our Price: $279.99
List Price: $359.99
You save 22%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$8/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Blizzard's HotBox™ 5 RGBAW PAR luminaire is built to impress, delivering remarkable color mixing, advanced electronics, and a huge amount of light output all in a tiny package. Like big brother RokBox™ 5, the HotBox™ 5 RGBAW offers cutting-edge 5-in-1 LEDs, a rock solid aluminum casing with dual hanging brackets and secure grip locking knobs, but in an even more compact/portable cute little package. It weighs in at just 3.5 pounds and is only 4" x 5" x 5" (7.25" tall including the brackets). The HotBox™ 5 RGBAW features 4/5/9 or 10 user-selectable DMX channel modes, which means it works great with many types of controllers. Full of control options, this luminaire offers RGBAW color mixing, 31 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 4-channel mode. To top it off, the HotBox™ 5 RGBAW comes equipped with industry standard powerCON® compatible power input/output and 3-pin DMX connections.

Features

  • RGBAW color mixing via 7x 15W 5-in-1 LEDs
  • Five user-selectable 32-bit dimming curves
  • Variable electronic dimming & strobe
  • Built-in color & chase macros via DMX
  • Built-in automated programs via master/slave
  • Built-in sound active programs
  • Rugged and well-built (It hits the gym regularly)
  • Super-quiet variable-speed internal fan cooling
  • Dual mounting brackets for positioning flexibility
  • Flicker-free constant-current 400hz LED driver
  • 3-pin male input and 3-pin female output
  • PowerCON™ compatible AC power In/Out connectors

Specifications

  • Light source: 7x 15W 5-in-1 LEDs (100,000 hours)
  • Beam Angle:
    • Optics standard: 25 degree
    • Beam: 26 degree
    • Field: 30 degree
  • Control Protocol: USITT DMX-512
  • DMX Channels: 4/5/9/10
  • Input: 3-Pin XLR Male
  • Output: 3-Pin XLR Female
  • DMX Profiles:
    • 4 Ch: HSV
    • 5 Ch: RGBAW
    • 9 Ch: Extended
    • 10 Ch: Extended plus 32-bit Dimming
  • Operating Modes:
    • Standalone
    • Master/Slave
    • Sound Active
    • Color Preset
  • Operating Voltage: 100-250VAC, 40-60 Hertz
  • Fuse: 2A 250V
  • Power Consumption: 58W, .83A
  • Power Factor: .56
  • Dimensions (LxWxH): 5" x 4" x 5" (127 x 101.6 x 127 mm)
  • Height with brackets: 7.25"
  • Product Weight: 3.5 lbs
  • Body Color: Black
  • Warranty: 2-year limited; does not cover malfunction caused by damage to LEDs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
