Ashly ne4250
4 Channel 250W @ 4 Ohms Power Amplifier

OUR PART #:  NE4250

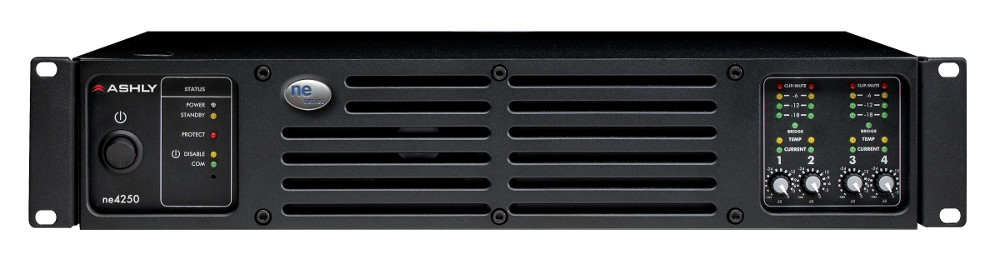

The Ashly ne4250 is a 250-watt @ 4 Ohm, four-channel amplifier.
Learn More
Our Price: $1,395.00
List Price: $1,745.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ashly ne4250
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ashly ne4250 is a 250-watt @ 4 Ohm, four-channel amplifier.

Connecting and controlling an amplifier for networked systems has now been simplified with Ashly’s NE Series amplifiers. Network Enabled (NE) amplifiers offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed.

Four, four-channel models with output power at 250W are available to fill a wide variety of low impedance, 25V, 70V and 100V performance installation or constant voltage applications. NE Series amplifiers are offered two ways; standard input with euroblock connectors (NE4250) and “pe” (Protea Enabled NE4250PE, etc) with euroblock input connectors and world renowned Protea DSP signal processing.

The DSP signal processing library is extensive and utilizes two SHARC 32-bit/ 96kHz processors. Processing blocks include Graphic, Parametric, Notch and Shelving Equalization, High-, Low- and All-Pass Filters (HPF/LPF/APF) with up to 48dB/Octave slopes, Delay, Compressor/Limiter, Gate, Ducking, Auto-leveler, Gain and Signal Generators (sinewave, white and pink noise). A full Matrix Mixer with assignable routing allows any input to drive any or all amplifier outputs. Presets can be used to store and retrieve global parameters of an entire amplifier’s control surface and DSP section.

Additionally, each amplifier also provides DC voltage control of the attenuators which makes it a snap to control volume from remote locations, preset recall, Remote Power Standby and data in and out ports for connecting accessories like the WR-5 to control user selected parameters. There are LED indicators for power, standby, protect, network communications and each channel has a four-step signal meter, bridge mono, temperature and current indicators.

Ashly ne4250 Features:

  • Four Channel Amplifier
  • Ethernet control Is standard
  • Low-Z, 25V, 70V and 100V Models
  • Extensive DSP Available
  • Easy and intuitive user interface
  • Extensive protection circuitry
  • Safety/Compliance: FCC, CE, RoHS
  • Optional CobraNet, EtherSound, AES/EBU, mic preamps
  • Front panel:
    • Level attenuators for each channel
    • Power switch can be disabled bysoftware
    • 4-Step Signal Level and Clip LED
  • Rear panel:
    • 10/100 Ethernet port
    • Euroblock inputs
    • Euroblock outputs
    • Remote level control
    • Preset recall
    • Remote power turn-on/off
    • Data in and out ports

Ashly ne4250 Specifications:

  • Rated Power 8 ohms (per channel) 150W
  • Rated Power 4 ohms (per channel) 250W
  • Rated Power 8 ohms (Bridged) 500W
  • Rated Power 25V, 70V, 100V (per channel) NR
  • S/N (20 Hz-20 kHz, unweighted) >105dB
  • 1/8th Output (Pink Noise) 31.25W
  • 1/8th Draw (Pink Noise) 200W
  • 1/8th Current (Pink Noise) 2.7A
  • Idle Power 30W
  • Idle Current 0.4A
  • Weight: 21.0 lbs. (9.53kg)
  • Frequency Response (8 ohms): 20 Hz - 20kHz, (unweighted) ±1dB
  • Input Impedance: 20k ohms, balanced
  • Input Sensitivity: 6.2dBu
  • Maximum Input Level: +21dBu
  • Internal HPF (25V, 70V, 100V models): (contolled by software) 80Hz (12dB/oct), 400Hz (6dB/oct), and OFF
  • Damping Factor (8 ohms): > 250
  • Cooling Temperature: dependent speed-controlled fan (Front in, Side out)
  • Output Circuitry: Class D
  • Connectors (each channel):
    • Input - Euroblock
    • Output - Euroblock
  • Front Controls: AC Power Switch, Individual input attenuators
  • Front indicators (LED color): Power (Blue), Standby (Yellow), Protect (Red), Disable (Yellow), Com (Green), Bridge (Green), Signal Level -18dB, -12dB (Green), -6dB (Yellow), Clip (Red), Temp (Yellow)
  • Rear Controls: Ethernet 10/100, Channel bridge switch (Low-Z only), Remote standby, Preset recall (4), Remote Level (4), Remote Data
  • Amplifier and Load Protection:
    • Output Overcurent
    • Main Supply Rail Overvoltage
    • Chassis Temperature
    • Inrush Limiting
    • Mains Fuse
  • Cordset: 15A Edison 3-Prong IEC
  • Dimensions:
    • Height: 3.50" (88.9 mm) 2RU
    • Width: 19" (483 mm)
    • Depth: 15.5" (394 mm)
