Ashly ne8250 8-Channel Network Power Amplifier, 250W at 4 Ohms

OUR PART #: NE8250

Copied to clipboard

The Ashly ne8250 is a 250-watt @ 4 Ohm, eight-channel amplifier. ...Read more

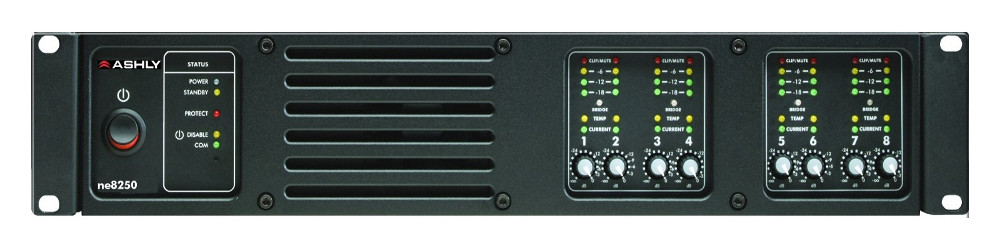

Ashly ne8250 8-Channel Network Power Amplifier, 250W At 4 Ohms Image 1
Ashly ne8250 8-Channel Network Power Amplifier, 250W At 4 Ohms Image 2
Ashly ne8250 8-Channel Network Power Amplifier, 250W At 4 Ohms
Our Price: $3,099.00
List Price: $3,849.00
You save 19%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$87/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Ashly ne8250 is a 250-watt @ 4 Ohm, eight-channel amplifier. Connecting and controlling an amplifier for networked systems has now been simplified with Ashly’s NE Series amplifiers. Network Enabled (NE) amplifiers offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed. Additionally, each amplifier also provides DC voltage control of the attenuators which makes it a snap to control volume from remote locations, preset recall, Remote Power Standby and data in and out ports for connecting accessories like the WR-5 to control user selected parameters. There are LED indicators for power, standby, protect, network communications and each channel has a four-step signal meter, bridge mono, temperature and current indicators.

Features

  • 8 Channel Amplifier
  • 10/100 Ethernet comes standard
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC,RoHS

Specifications

  • Rated Power 8 ohms (per channel) 150W
  • Rated Power 4 ohms (per channel) 250W
  • Rated Power 8 ohms (Bridged) 500W
  • S/N (20 Hz-20 kHz, unweighted) >105dB
  • Idle Power 30W
  • Idle Current 0.4A
  • Frequency Response (8 ohms): 20 Hz - 20kHz, (unweighted) ±1dB
  • Input Impedance: 20k ohms, balanced
  • Input Sensitivity: 6.2dBu
  • Maximum Input Level: +21dBu
  • Damping Factor (8 ohms): > 250
  • Cooling Temperature: dependent speed-controlled fan (Front in, Side out)
  • Output Circuitry: Class D
  • Cordset: 15A Edison 3-Prong IEC
  • Weight: 21.0 lbs. (9.53kg)
  • Dimensions:
    • Height: 3.50" (88.9 mm) 2RU
    • Width: 19" (483 mm)
    • Depth: 15.5" (394 mm)
