Atlas Sound BB-EB1616DT
BlueBridge Expansion I/O Box with Dante

OUR PART #:  BB-EB1616DT

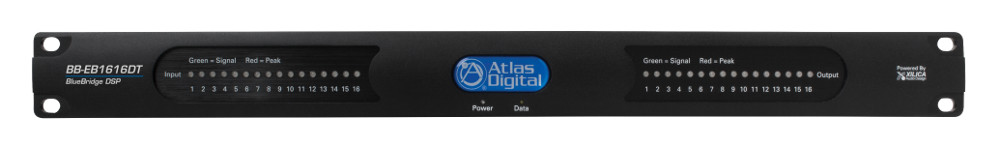

The Atlas Sound BB-EB1616DT is a one rack space unit device with LED indicators for each channel, network LED’s and power LED’s on the front panel.
Learn More
Our Price: $2,534.99
List Price: $3,168.99
You save 20%!
Write the first review.
Atlas Sound BB-EB1616DT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Atlas Sound BB-EB1616DT is a one rack space unit device with LED indicators for each channel, network LED’s and power LED’s on the front panel. On the rear there are dual RJ-45 connectors for Danteâ„¢, 16 balanced mic/line inputs and 16 balanced line level outputs all using Euro Block/Phoenix style connectors.  The EB1616DT software allows you to manage inputs and outputs as required from either BlueBridge or EB1616 end of the system.The BB-EB1616DT can be incorporated into any BlueBridge system as an I/O expander or it can be used as a standalone digital snake on networks featuring Danteâ„¢.

Atlas Sound BB-EB1616DT Features:

  • 16 x 16 Danteâ„¢ Network I/O
  • 16 x 16 Analog I/O
  • Selectable Mic/Line Inputs
  • Premium Grade THAT Corp Microphone Preamps
  • 48V Phantom Power
  • 48kHz Sampling
  • 40 Bit Floating DSP Engine
  • High Performance 24 Bit Converters
  • Ethernet Network Connectivity

Atlas Sound BB-EB1616DT Specifications:

  • Input impedance: >10kOhms
  • Output impedance: 50 Ohms
  • Maximum Level: +20dBu
  • Mic Gain: 0/+40dB Steps
  • Frequency Response: Â±0.1dB (20Hz-20kHz)
  • CMRR: >100dB (50Hz-10kHz)
  • Crosstalk: <-100dB
  • Distortion: .002% (1kHz @ +40dBu))
  • Signal LEDs: 1 Dual Color Per Channel
  • Status LEDs: Power and Data
  • Analog I/O: Phoenix Plug-in 3.5MM
  • Ethernet Network I/O: RJ45 (CAT5)
  • Power: 90-240VAC (50-60Hz)
  • 1.75"(44mm)H x 19"(483mm)W x 9" (229mm)D
